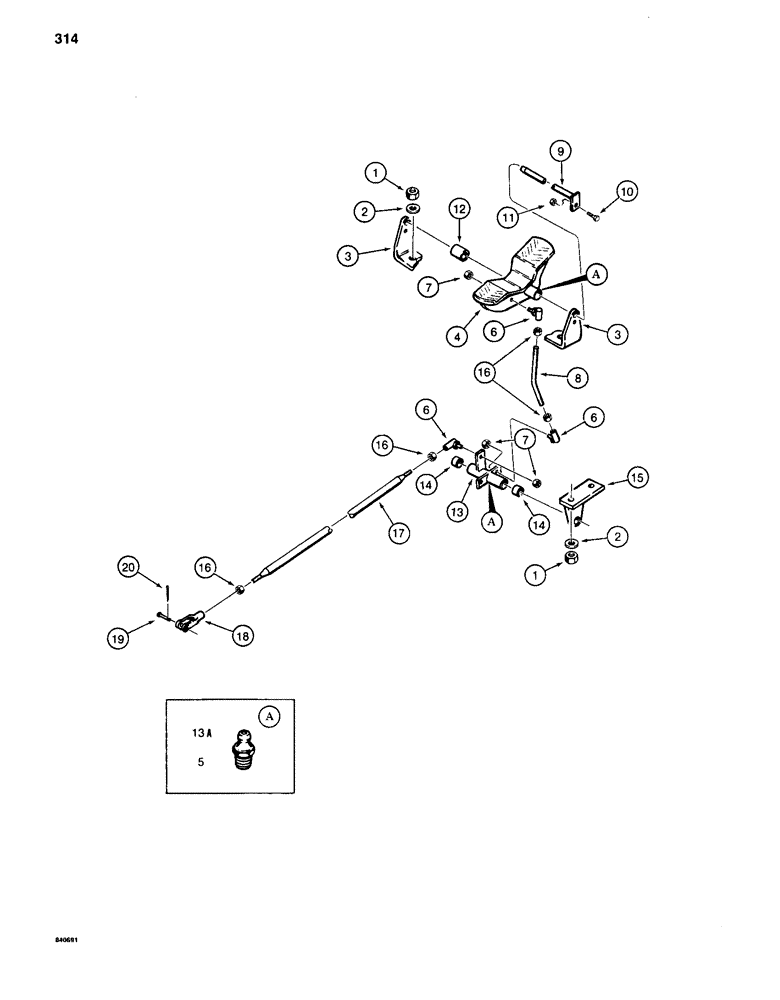

Запчасти Case 880C (314) - CONTROLS - BEFORE PIN 6205236, RIGHT TRACK PEDAL AND LINKAGE (07) - HYDRAULIC SYSTEM

1

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

2

95-8

WASHER,1/2"

flat 1/2"

4шт.

3

S226342

BRACKET - foot pedal mounting

1шт.

4

S511074

PEDAL

- right track

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

6

D38296

JOINT

BALL JOINT - connecting rods

3шт.

7

131-493

NUT

- hex, self-locking, 3/8" - 24 NF

3шт.

8

S229404

ROD

- connecting

1шт.

9

S218965

SHAFT ASSY.

SHAFT - pedal

1шт.

10

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

11

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

1шт.

12

S64465

SPACER

- pedal

1шт.

13

S236287

BELLCRANK - connecting rods, Includes: Ref. 13A

1шт.

13a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, NF taper 1/4"-28 NPT x .54" lg

1шт.

14

A30586

NEEDLE BEARING

- bellcrank

2шт.

15

S229382

BRACKET - bellcrank support

1шт.

16

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - 3/8" - 24 NF

4шт.

17

S236302

ROD - connecting

1шт.

18

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - at valve

1шт.

19

S10767

PIN

CLEVIS PIN - at valve

1шт.

20

132-67

COTTER PIN,5/32" x 3/4"

PIN, Split (Cotter), 5/32" x 3/4"

1шт.
