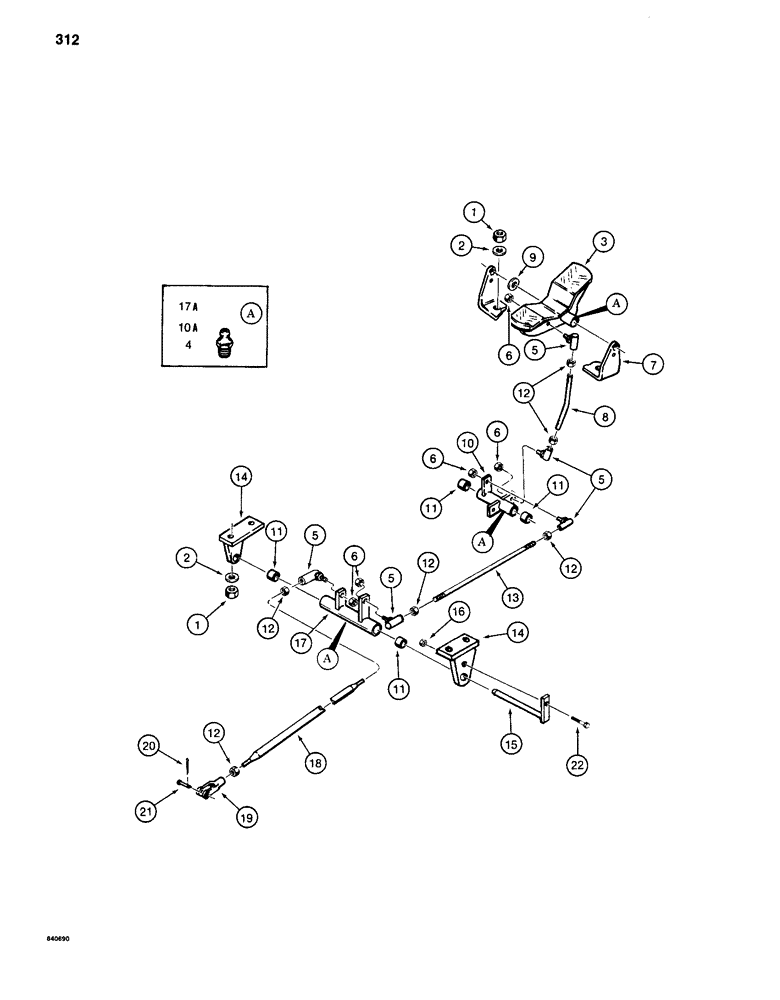

Запчасти Case 880C (312) - CONTROLS - BEFORE PIN 6205236, TOOL PEDAL AND LINKAGE (07) - HYDRAULIC SYSTEM

1

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

6шт.

2

95-8

WASHER,1/2"

flat 1/2"

6шт.

3

S511074

PEDAL

- tool

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, NF taper 1/4"-28 NPT x .54" lg

1шт.

5

D38296

JOINT

BALL JOINT - connecting rods

5шт.

6

131-493

NUT

- hex, self-locking, 3/8" - 24 NF

5шт.

7

S226342

BRACKET - foot pedal mounting

1шт.

8

S229404

ROD

- connecting

1шт.

9

195-41

WASHER,5/8"

Used as a spacer 5/8"

1шт.

10

S229402

ARM ASSY.

BELLCRANK - connecting rods, Includes: Ref. 10A

1шт.

10a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

11

A30586

NEEDLE BEARING

- bellcrank

4шт.

12

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - 3/8" - 24 NF

6шт.

13

S81263

ROD

- connecting

1шт.

14

S218939

BRACKET - bellcrank support

2шт.

15

S219444

SHAFT

- pivot, models without leveler only, for models with leveler, see Ref. 17 on figure 322

1шт.

16

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

1шт.

17

S236292

ARM ASSY.

BELLCRANK - connecting rods, Includes: Ref. 17A

1шт.

17a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

18

S219273

ROD

- connecting

1шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - at valve

1шт.

20

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

21

S10767

PIN

CLEVIS PIN - at valve

1шт.

22

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
