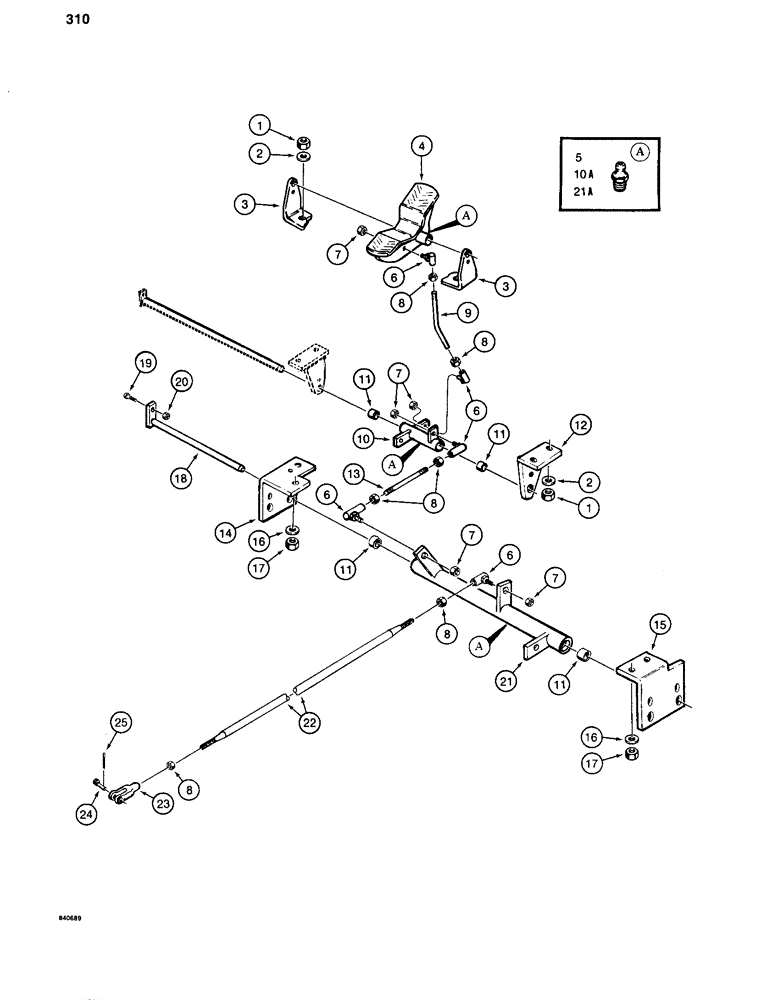

Запчасти Case 880C (310) - CONTROLS - BEFORE PIN 6205236, SWING PEDAL AND LINKAGE (07) - HYDRAULIC SYSTEM

1

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

2

95-8

WASHER,1/2"

flat 1/2"

4шт.

3

S226342

BRACKET - foot pedal mounting

1шт.

4

S511074

PEDAL

- swing

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

6

D38296

JOINT

BALL JOINT - connecting rods

5шт.

7

131-493

NUT

- hex, self-locking, 3/8" - 24 NF

5шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - 3/8" - 24 NF

6шт.

9

S229404

ROD

- connecting

1шт.

10

S236288

BELLCRANK - connecting rods, Includes: Ref. 10A

1шт.

10a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

11

A30586

NEEDLE BEARING

BEARING - needle

4шт.

12

S229382

BRACKET - bellcrank support

1шт.

13

S63198

PISTON ROD

ROD - connecting

1шт.

14

S218940

BRACKET - left-hand

1шт.

15

S220257

BRACKET - right-hand

1шт.

16

95-8

WASHER,1/2"

flat 1/2"

4шт.

17

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

18

S218961

SHAFT ASSY.

SHAFT - pivot

1шт.

19

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

20

131-60

LOCK NUT,5/8"-18

NUT - hex, self-locking, 1/4" - 20 NC

1шт.

21

S236289

BELLCRANK - connecting rods, Includes: Ref. 21A

1шт.

21a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

22

S235852

ROD - connecting

1шт.

23

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - at valve

1шт.

24

S10767

PIN

CLEVIS PIN - at valve

1шт.

25

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.
