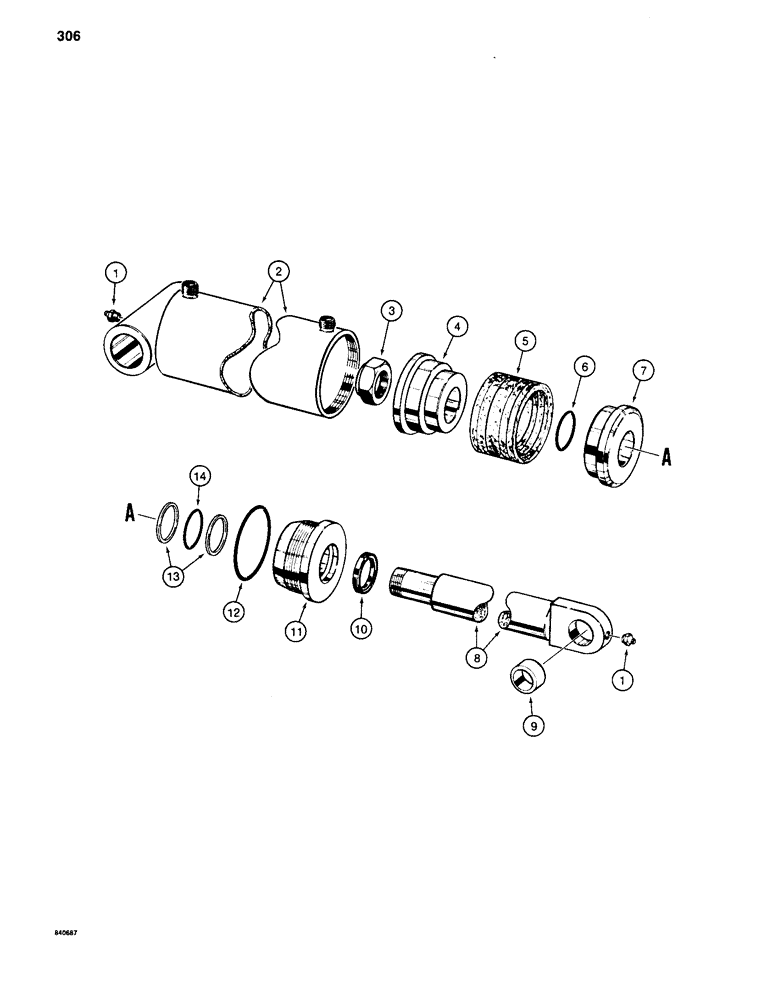

Запчасти Case 880C (306) - S37583 WRIST-O-TWIST CYLINDER (07) - HYDRAULIC SYSTEM

S37583

CYLINDER

ASSEMBLY - wrist-o-twist, Includes: Ref. 1 - 14

1шт.

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

2

S206998

TUBE,13.84" L

- cylinder

1шт.

3

131-490

LOCK NUT,1 1/4"-12

NUT - hex, self-locking, 1-1/4" - 12 NF, special height

1шт.

4

S26052

PISTON

- split, nut end half

1шт.

5

S26050

GROMMET

PACKING ASSEMBLY - piston

1шт.

6

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- piston, inner

1шт.

7

S26053

PISTON

- split, rod end half

1шт.

8

S206996

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 9

1шт.

9

S202071

BUSHING

- piston rod

1шт.

10

S40025

WIPER SEAL

WIPER - piston rod, outer

1шт.

11

S28553

HEAD

GLAND - cylinder

1шт.

12

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland seal

1шт.

13

T11023

SEAL

BACKUP RING - rod seal O-ring

2шт.

14

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- rod seal

1шт.
