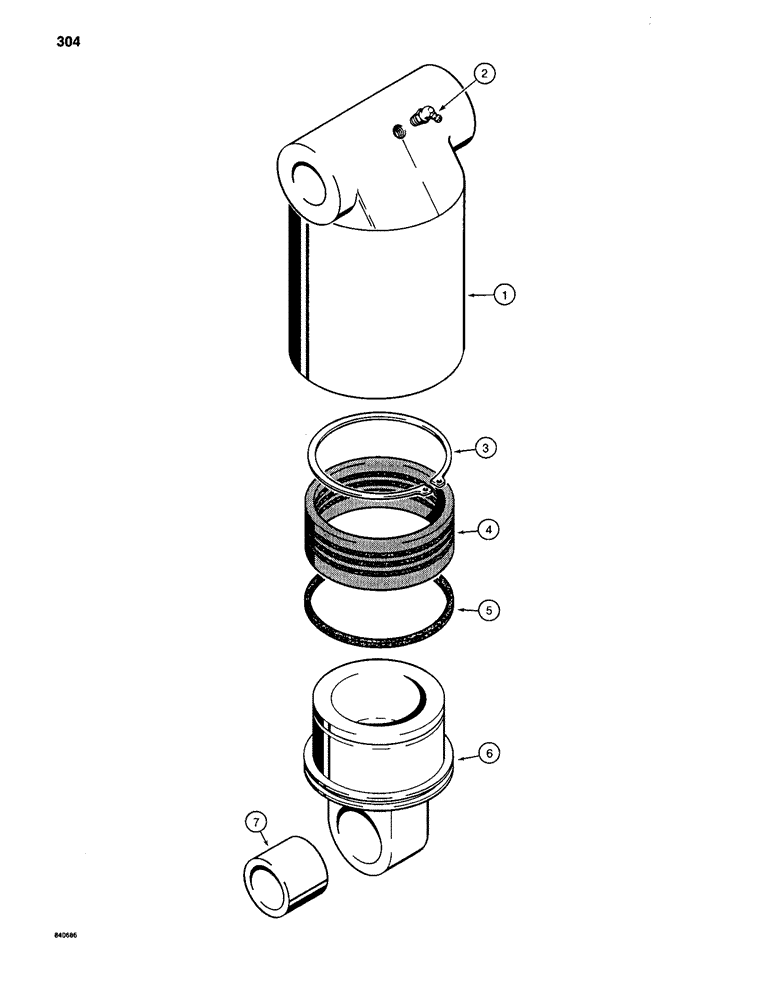

Запчасти Case 880C (304) - LEVELER CYLINDER (07) - HYDRAULIC SYSTEM

S56810

CYLINDER

ASSEMBLY - leveler, Includes: Ref. 1 - 7

2шт.

1

S211166

TUBE,9.75" L

- cylinder

1шт.

2

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

3

H756064

SNAP RING,#500, 4.692", Ext

RETAINING RING - piston packing

1шт.

4

S209061

SEAL ASSY.

PACKING ASSEMBLY - piston

1шт.

5

S118540

SEAL

WIPER - piston

1шт.

6

S211136

PISTON ASSY.

PISTON AND ROD ASSEMBLY - cylinder, Includes: Ref. 7

1шт.

7

S202130

THREADED BUSHING

BUSHING - piston rod

1шт.
