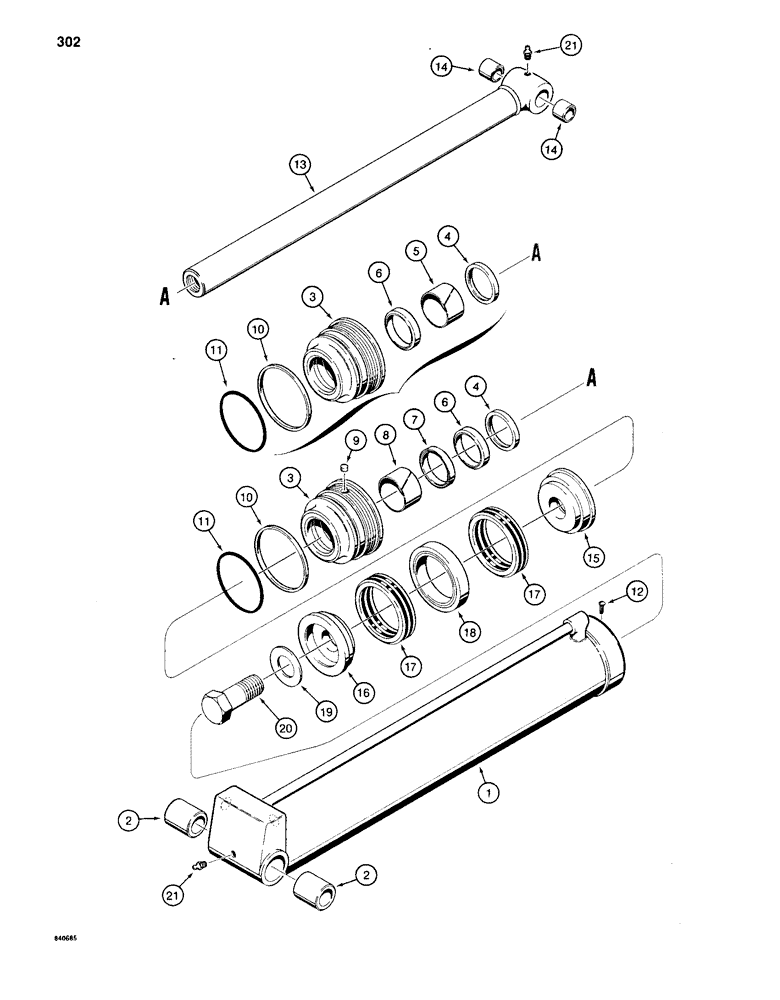

Запчасти Case 880C (302) - G107683 TOOL CYLINDER (07) - HYDRAULIC SYSTEM

G107683

CYLINDER

ASSEMBLY - tool, 5" (127 mm) ID x 31.1" (790 mm) stroke, replaces S602298 cylinder, Includes: Ref. 1 - 21

1шт.

G107684

TUBE,39.04" L

ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

- tube

2шт.

G104328

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G107993

1шт.

5

S220008

BUSHING

- gland, used immediately behind wiper on some glands, not used when Ref. 8 is used

1шт.

6

G107925

SEAL

- piston rod, wide

1шт.

Part of seal kit P/N G107993

1шт.

6

G100780

SEAL

- piston rod, service option, severe heat or cold

1шт.

7

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- piston rod, narrow, if used

1шт.

Part of seal kit P/N G107993

1шт.

8

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- gland, used in inner part of some glands, not used when Ref. 5 is used

1шт.

Part of seal kit P/N G107993

1шт.

9

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

BACKUP RING - Gland O-Ring

1шт.

Part of seal kit P/N G107993

1шт.

11

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G107993

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8-32 NC x 3/8"

1шт.

S220004

ROD ASSY.

ROD ASSEMBLY - piston, 2-1/2" (64 mm) diameter, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

14

S202070

BUSHING

- piston rod

2шт.

15

S220006

PISTON

- split, rod end half

1шт.

16

D49335

PISTON

- split, bolt end half

1шт.

17

D47206

PACKING

- piston

2шт.

Part of seal kit P/N G107993

1шт.

18

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - packing

1шт.

19

NLS

NO LONGER SERVICED

- hardened

1шт.

20

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- hex head, 1-1/2" - 12 NF x 3-1/2", grade 8

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G107993

KIT

- seal, Includes: Refs. 4, 6, 7, 8, 10, 11 and 17

1шт.
