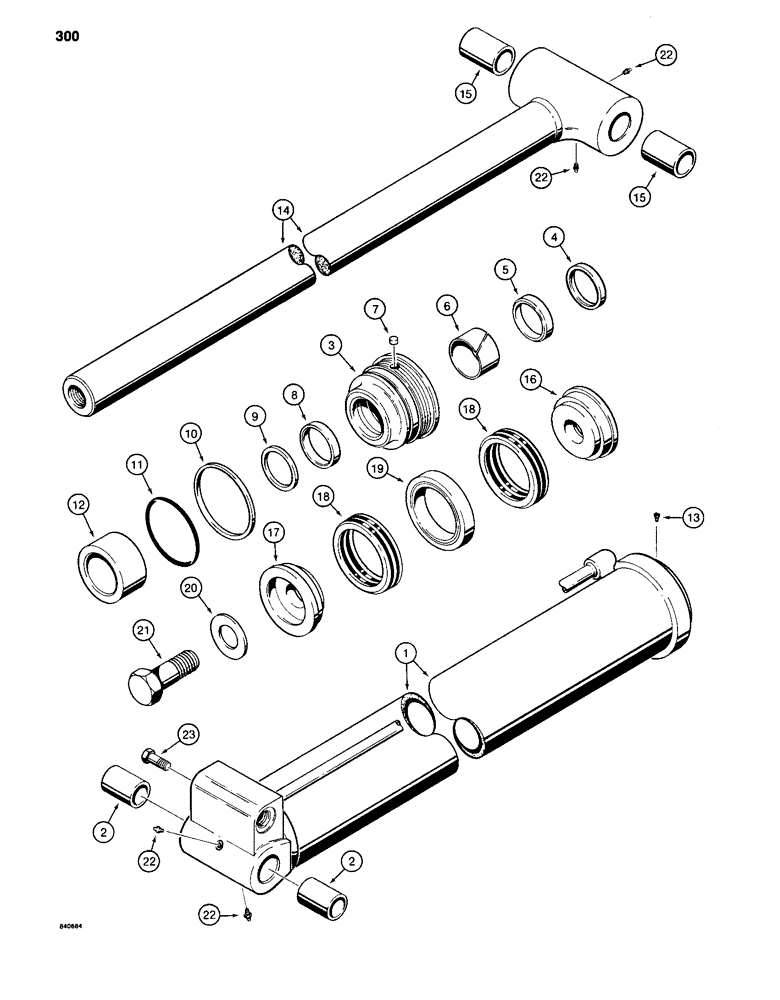

Запчасти Case 880C (300) - G107679 BOOM AND ARM CYLINDER (07) - HYDRAULIC SYSTEM

G107679

CYLINDER

ASSEMBLY - boom and arm, 5-1/2" (140 mm) ID x 45-1/2" (1156) stroke, replaces S602618 cylinder, Includes: Ref. 1 - 22

2шт.

G107680

TUBE,5.5" DIA x 55.59" L

ASSEMBLY - cylinder (Replaces S107680), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

- tube

2шт.

G104348

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 12

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G105566

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing, not used in newer cylinders

1шт.

6

G102428

BEARING,2.75mm ID x 69.85mm OD x 37.85 W

BUSHING - center

1шт.

Part of seal kit P/N G105566

1шт.

7

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

8

G107926

SEAL

- piston rod, wide

1шт.

Part of seal kit P/N G105566

1шт.

8

G100781

SEAL ASSY.

SEAL - piston rod, service option, severe heat or cold

1шт.

9

G107999

SEAL

SEAL - piston rod, narrow, if used

1шт.

Part of seal kit P/N G105566

1шт.

10

G107971

RING

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N G105566

1шт.

11

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G105566

1шт.

12

S220102

SPACER

- stroke limiter

1шт.

13

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8-32 NC x 3/8"

1шт.

S512193

ROD ASSY.

ROD ASSEMBLY - piston, 2-3/4" (70 mm) OD, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

15

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

- piston rod

2шт.

16

S220101

PISTON

- split, rod end half

1шт.

17

D49165

PISTON

- split, bolt end half

1шт.

18

D47207

GASKET KIT

PACKING - piston

2шт.

Part of seal kit P/N G105566

1шт.

19

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - packing

1шт.

20

G32666

WASHER

- hardened

1шт.

21

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- hex head, 1-1/2" - 12 NF x 3-1/2", grade 8

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, replace two fittings with Refs. 22A and 22B on boom cylinder only

4шт.

22a

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 65 degree, 1/8" NPT, used on cylinder, not shown

1шт.

22b

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT, used on cylinder rod of boom cylinder, not shown

1шт.

23

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Fastens to cylinder tube Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

G105566

SEAL KIT

KIT - seal, Includes: Refs. 4, 6, 8, 9, 10, 11 and 18

1шт.
