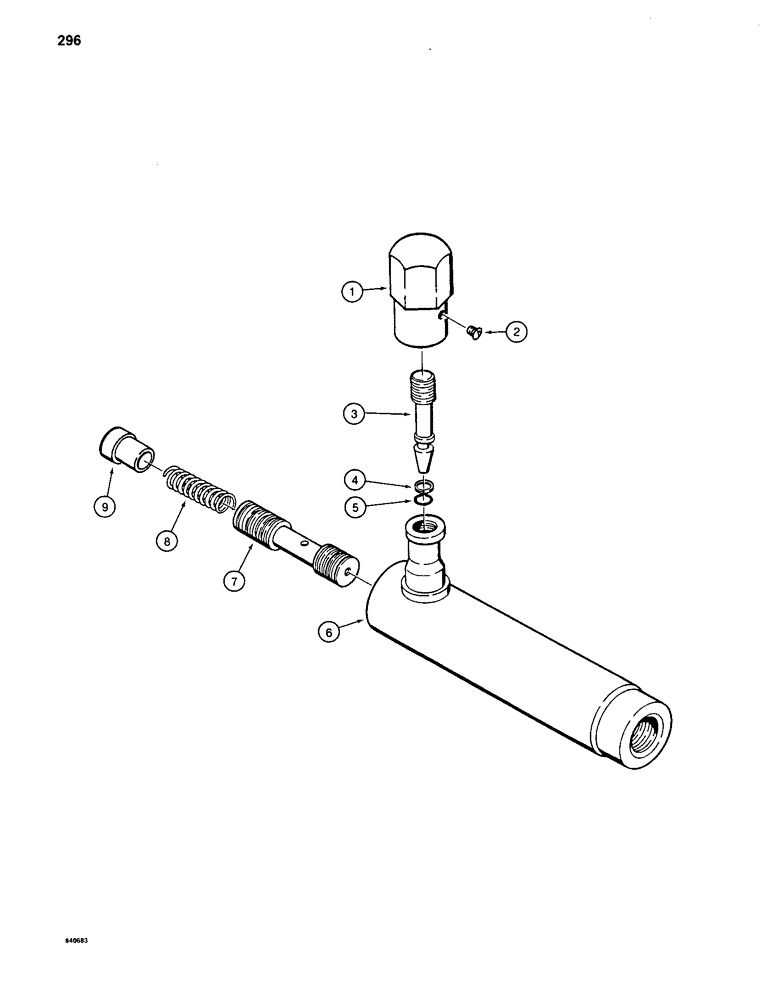

Запчасти Case 880C (296) - WRIST-O-TWIST FLOW CONTROL VALVE, BEFORE PIN 6205339 (07) - HYDRAULIC SYSTEM

S210358

LOCK VALVE

VALVE - flow control, Includes: Ref. 1 - 9

2шт.

1

S115296

KNOB - flow control valve

1шт.

2

S115295

SET SCREW - special

1шт.

3

NSS

NOT SOLD SEPARAT

NEEDLE - flow control valve

1шт.

4

L35505

FILTER

BACKUP RING - needle O-ring

1шт.

5

S115293

O-RING - needle

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - flow control valve

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - flow control valve

1шт.

8

S115299

SPRING - flow control valve

1шт.

9

NSS

NOT SOLD SEPARAT

ORIFICE - flow control valve

1шт.
