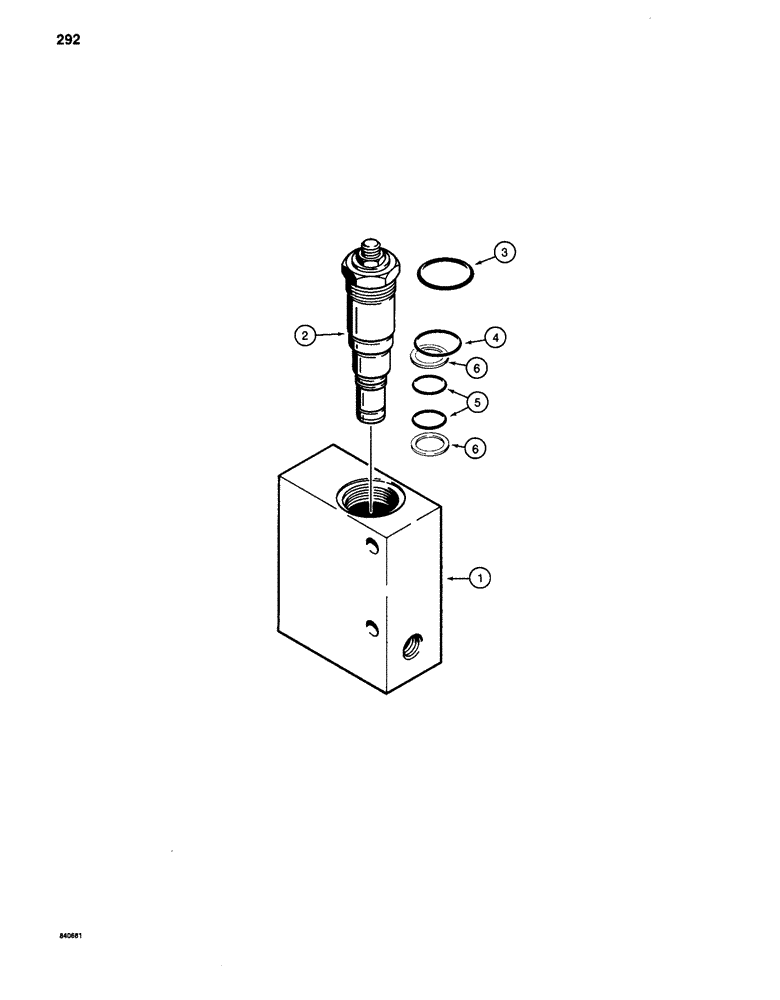

Запчасти Case 880C (292) - S236348 PRESSURE REDUCING VALVE, FAST HOIST CIRCUIT (07) - HYDRAULIC SYSTEM

S236348

VALVE

ASSEMBLY - pressure reducing, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - pressure reducing valve, includes separate shell and loose parts

1шт.

3

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- large, outer

1шт.

4

D77584

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

- intermediate, center

1шт.

5

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- small, inner

2шт.

6

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

BACKUP RING - small orings

2шт.
