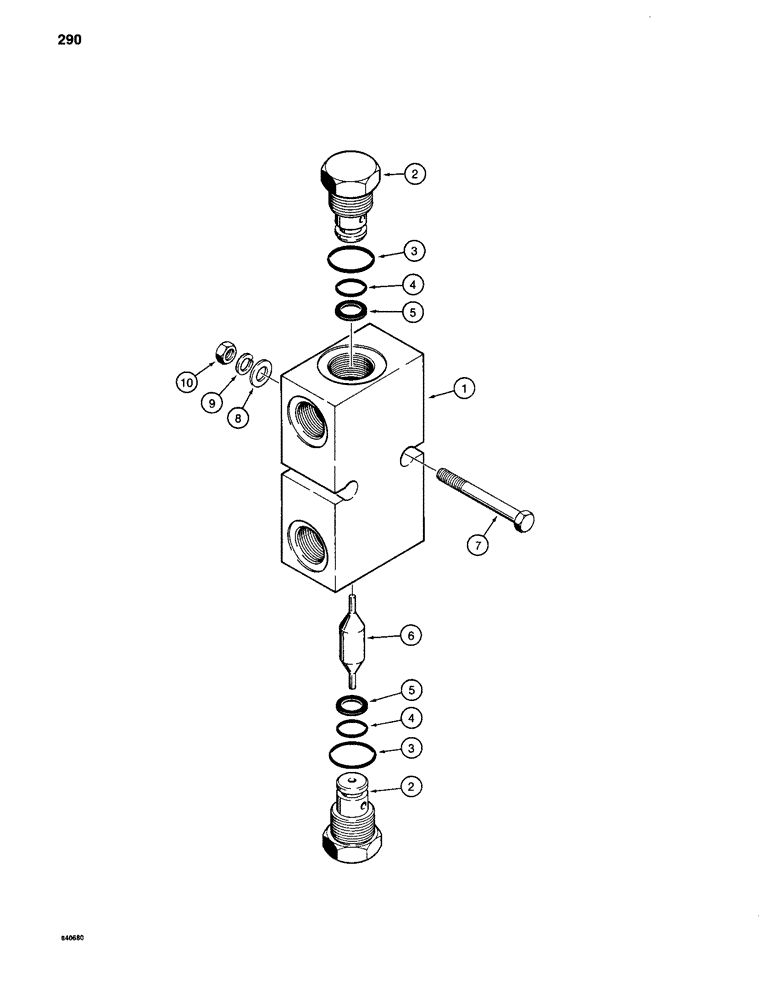

Запчасти Case 880C (290) - S515156 LEVELER CHECK VALVE (07) - HYDRAULIC SYSTEM

S516156

CHECK VALVE

ASSEMBLY - leveler circuit, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

N8483

VALVE, CHECK

CARTRIDGE ASSEMBLY - check valve, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - check valve

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer

1шт.

4

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- inner

1шт.

5

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - inner O-ring

1шт.

6

N8482

PLUNGER

- two-way, center

1шт.

7

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20 NC x 2-1/4"

2шт.

8

195-102

WASHER,1/4"

- flat, 5/16"

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.
