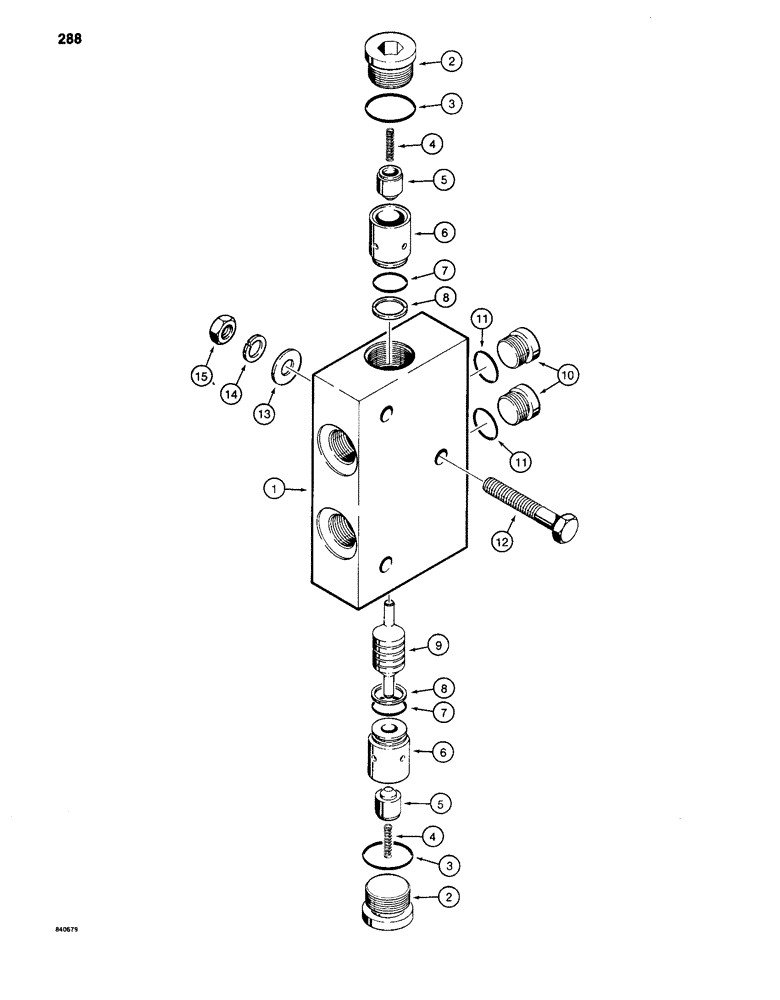

Запчасти Case 880C (288) - S241018 LEVELER CHECK VALVE (07) - HYDRAULIC SYSTEM

S241018

CHECK VALVE

ASSEMBLY - leveler circuit, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

N9046

CARTRIDGE

CHECK ASSEMBLY - double, Includes: Ref. 2 - 9

1шт.

2

86625138

PLUG,7/18" - 14

Check, Includes Ref. 3 Hex Soc, 7/8"-14 ORB

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

4

N9047

SPRING

- poppet

2шт.

5

NSS

NOT SOLD SEPARAT

POPPET - check valve

2шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE - check valve

2шт.

7

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- sleeve

2шт.

8

D37071

RING

BACKUP RING - sleeve O-ring

2шт.

9

N9048

PLUNGER

- two-way center

1шт.

10

9625178

PLUG,9/16" - 18 ORB

Side, Incl. Ref. 11 Hex Soc, 9/16"-18 ORB

2шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

1шт.

12

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20 NC x 2-1/4"

2шт.

13

195-102

WASHER,1/4"

- flat, 5/16"

2шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.
