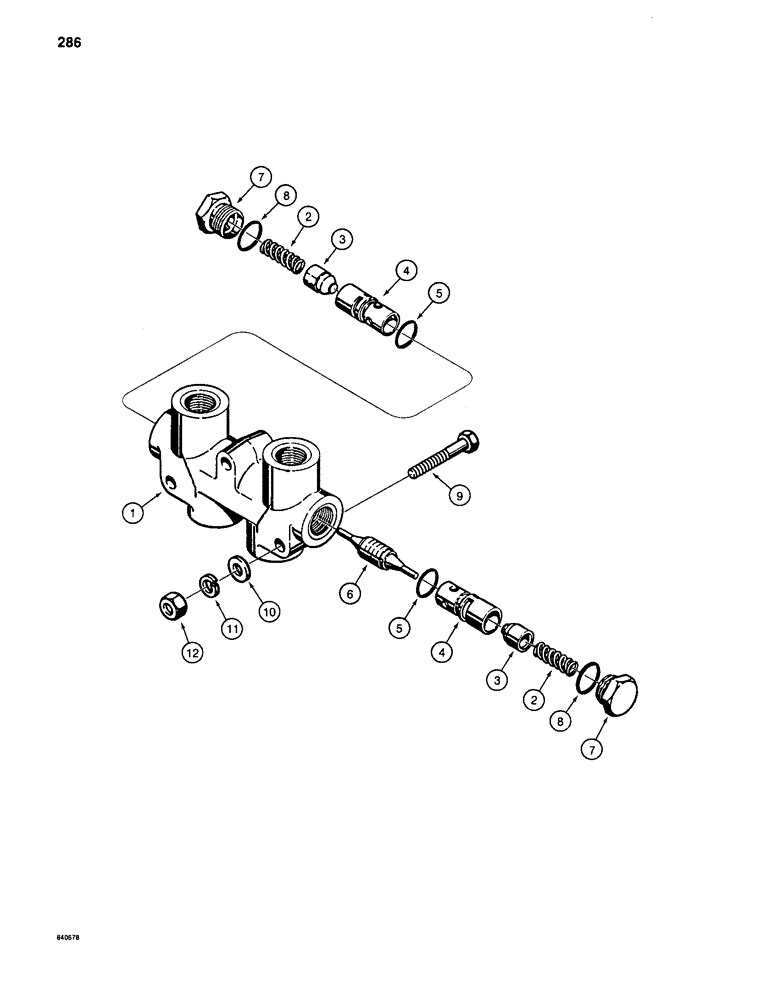

Запчасти Case 880C (286) - S33333 LEVELER CHECK VALVE (07) - HYDRAULIC SYSTEM

S516745

CHECK VALVE

ASSEMBLY - leveler circuit (Replaces S33333), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

S61961

CHECK VALVE

CARTRIDGE ASSEMBLY - check valve, Includes: Ref. 2 - 5

1шт.

2

S96675

SPRING

- poppet

2шт.

D48819

VALVE POPPET

POPPET AND SLEEVE ASSEMBLY - check valve, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

POPPET - check valve

1шт.

4

NSS

NOT SOLD SEPARAT

SLEEVE - check valve

1шт.

5

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- sleeve

1шт.

6

D48821

TRANSMISSION

PLUNGER - two-way, center

1шт.

7

D48822

PLUG

- special

2шт.

9

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20 NC x 2-1/4"

2шт.

10

195-102

WASHER,1/4"

- flat, 5/16"

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

2шт.
