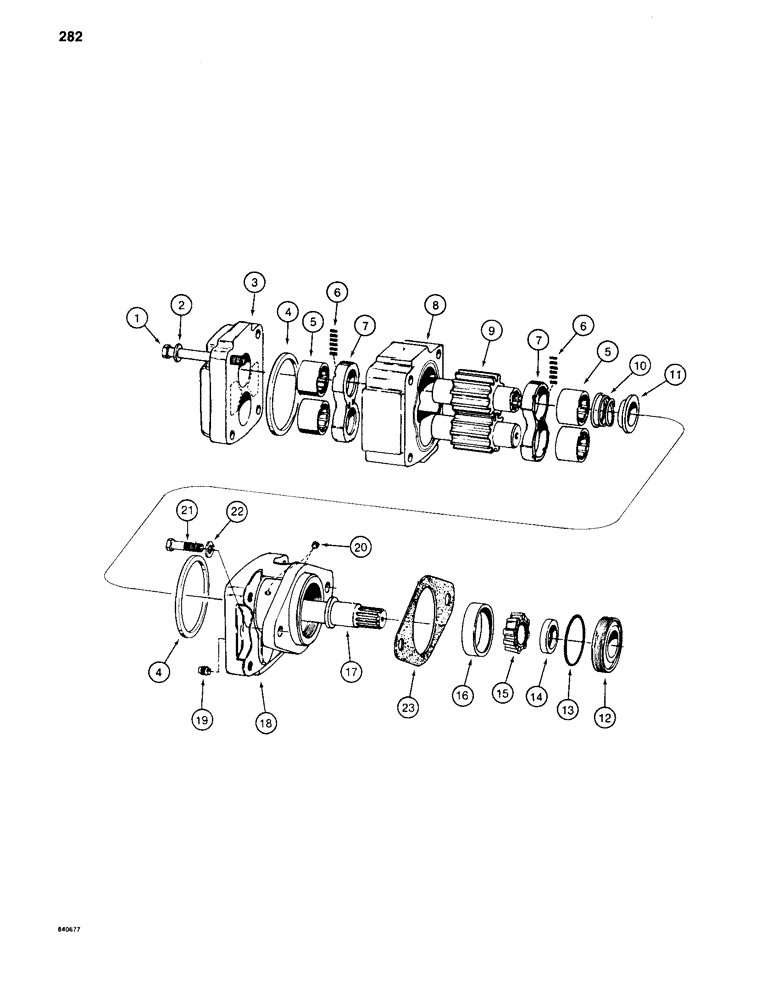

Запчасти Case 880C (282) - S33530 SWING HYDRAULIC MOTOR (07) - HYDRAULIC SYSTEM

S33530

MOTOR

ASSEMBLY - hydraulic, swing, Includes: Ref. 1 - 20

1шт.

1

113-653

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- hex head, 5/8" - 11 NC x 5-3/4"

4шт.

2

D31957

WASHER

- flat, 5/8", special

4шт.

3

S61750

COVER

- port end

1шт.

4

D41391

O-RING

SEAL - square section, Serial Range: covers-housing

2шт.

5

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

- end covers

4шт.

6

L32099

SEAL

- pocket, thrust plate

12шт.

7

D31955

PLATE

THRUST PLATE - gear

2шт.

8

S67295

HOUSING

- gear

1шт.

9

S67298

GEAR-SET

GEAR SET - hydraulic motor, includes drive gear and driven gear, matched set

1шт.

10

D31953

VALVE SPRING

SPRING - output shaft

1шт.

11

D31952

BUSHING

SEAT - spring

1шт.

12

S70415

RETAINER

GLAND - ring

1шт.

13

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- gland

1шт.

14

S70416

OIL SEAL

- output shaft

1шт.

S63513

TAPERED BEARING

ASSEMBLY - output shaft, Includes: Ref. 15 and 16

1шт.

15

D31949

ROLLER BEARING,30.175 mm ID x 21.636 mm

CONE - bearing

1шт.

16

D31948

BEARING CUP,2.5312" OD x 0.6563"

CUP - bearing

1шт.

17

S64277

SHAFT

OUTPUT SHAFT - hydraulic motor

1шт.

18

S77722

COVER

- shaft end

1шт.

19

S61749

VALVE

CHECK ASSEMBLY - hydraulic motor

2шт.

20

221-841

PLUG

- hex socket head, 1/4" NPT

2шт.

21

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

S203387

GASKET

- swing motor to brake, if used

1шт.
