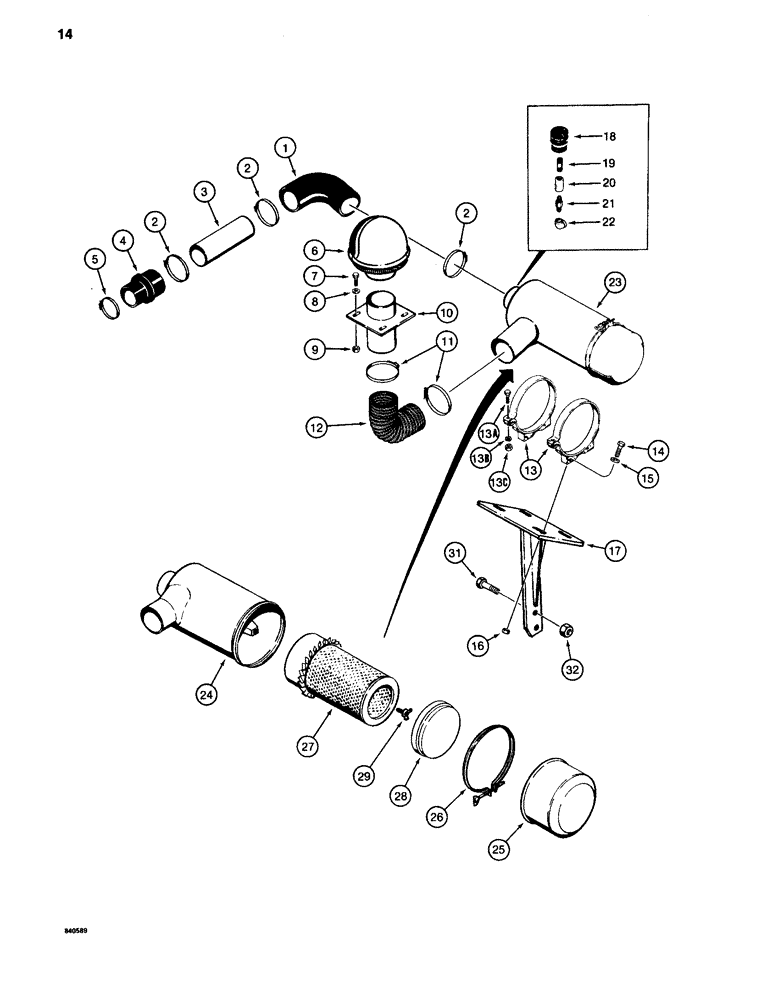

Запчасти Case 880C (014) - AIR CLEANER AND AIR INTAKE PARTS, PIN 6205253 AND AFTER (01) - ENGINE

1

L52698

ELBOW UNION

ELBOW - 90 degree, rubber, air cleaner outlet

1шт.

2

214-359

CLAMP,#92, 3.75"-4.06", T-Bolt

- elbow and reducer

3шт.

3

S239453

TUBE - air cleaner to engine 3.5" OD x 9" L

1шт.

4

S83126

ADAPTER

REDUCER - rubber

1шт.

5

S83025

CLAMP

-, Serial Range: reducer-engine

1шт.

6

W13501

CAP

- rain

1шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

8

195-518

WASHER,1/4", SAE

- flat, 1/4"

4шт.

9

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

4шт.

10

S238406

BRACKET - rain cap mounting

1шт.

11

214-360

CLAMP,#100, 4.00"-4.31", T-Bolt

- hose

2шт.

12

REF

INSTRUCTION

HOSE - 14"( 3556 mm) long, cut from S118592, see below

1шт.

13

S64722

BAND - air cleaner, replace hardware with Refs. 13A-13C below

2шт.

13a

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

13b

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13c

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

15

195-104

WASHER,3/8"

- flat, NC 3/8"

4шт.

16

131-52

NUT,3/8"-16, GC

NUT - hex, 3/8" - 16 NC

4шт.

17

S514491

BRACKET

- air cleaner mounting

1шт.

18

A59568

INDICATOR

RESTRICTION INDICATOR - air cleaner

1шт.

19

221-111

PIPE,Nipple, 1/8" NPT x 3"

NIPPLE - 1/8" NPT x 3", restriction indicator line

1шт.

20

221-335

COUPLING,Pipe, 1/8" NPT

- Pipe, 1/8" NPT

1шт.

21

D36264

FITTING

- special, filter

1шт.

22

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- 90 degree, 1/8" NPT

1шт.

23

S512749

AIR CLEANER

ASSEMBLY - complete, Includes: Ref. 24 - 30

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

25

A40951

CUP

- dust

1шт.

26

R15731

CLAMP

- body to dust cup

1шт.

27

D56453

AIR CLEANER

ELEMENT - air cleaner

1шт.

28

D37979

BAFFLE

- dust cup

1шт.

29

D78354

WING NUT

NUT - wing, steel, replaces nylon nut

1шт.

30

S113642

CAP

- 1/8" NPT, replaced with refs 18-22, not shown

1шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

32

131-70

NUT,1/2"-13, GB

NUT - hex, 1/2" - 13 NC

2шт.

S118592

HOSE,4.00" ID x 120.00"

- Bulk 4.00" ID x 120.00"

1шт.
