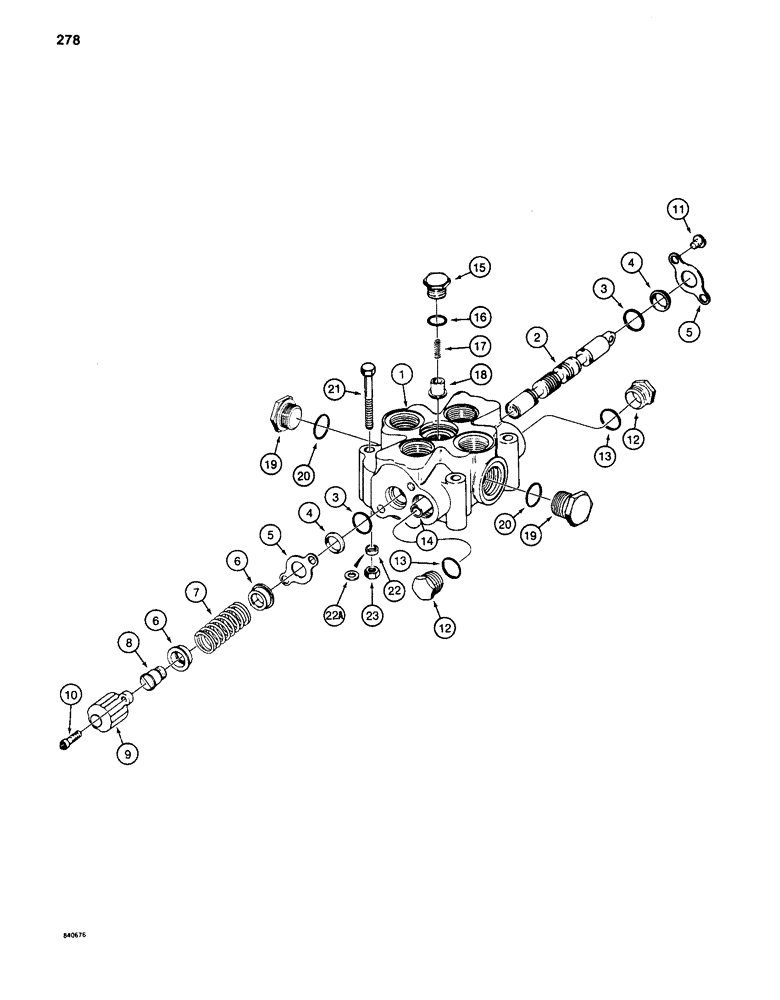

Запчасти Case 880C (278) - ONE SPOOL CONTROL VALVE (07) - HYDRAULIC SYSTEM

S506349

VALVE

CONTROL VALVE ASSEMBLY - one spool, leveler circuit, if used, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

S215229

PLUNGER

SPOOL - control valve

1шт.

3

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- spool seal

2шт.

4

S62092

WIPER

- spool

2шт.

5

S13829

PLATE

- seal retaining

2шт.

6

S62288

SEAT

- spring

2шт.

7

S95166

SPRING

- spool centering

1шт.

8

S62292

BOLT

- special

1шт.

9

S62278

CAP

- spool

1шт.

10

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - hex socket head, 3/8" - 16 NC x 1"

2шт.

11

61-68

HEX SOC SCREW,3/8"-16 x 1/2"

BOLT - hex socket head, 3/8" - 16 NC x 1/2"

2шт.

12

S13707

PLUG

- circuit relief ports

2шт.

13

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- plug

2шт.

14

S62276

PLUG

SPACER - relief valve port plugs

1шт.

15

S13714

PLUG

- check valve

1шт.

16

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- check valve

1шт.

17

S13715

SPRING

- check valve

1шт.

18

S13716

VALVE POPPET

POPPET - check valve

1шт.

19

273916

PLUG,Hex, 1-5/16" - 12 ORB

Assy, Side ports, Includes Ref. 20 Hex Hd, 1 5/16"-12 ORB

2шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug assembly

1шт.

21

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

Used before PIN 6205236 Hex, 1/2"-13 x 4 3/4", G5

3шт.

21

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex head, 1/2" - 13 NC x 3-3/4", used on PIN 6205236 and after

3шт.

22

S113313

SPACER

- used before PIN 6205236

3шт.

22

95-8

WASHER,1/2"

flat, used on PIN 6205236 and after 1/2"

3шт.

23

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

3шт.
