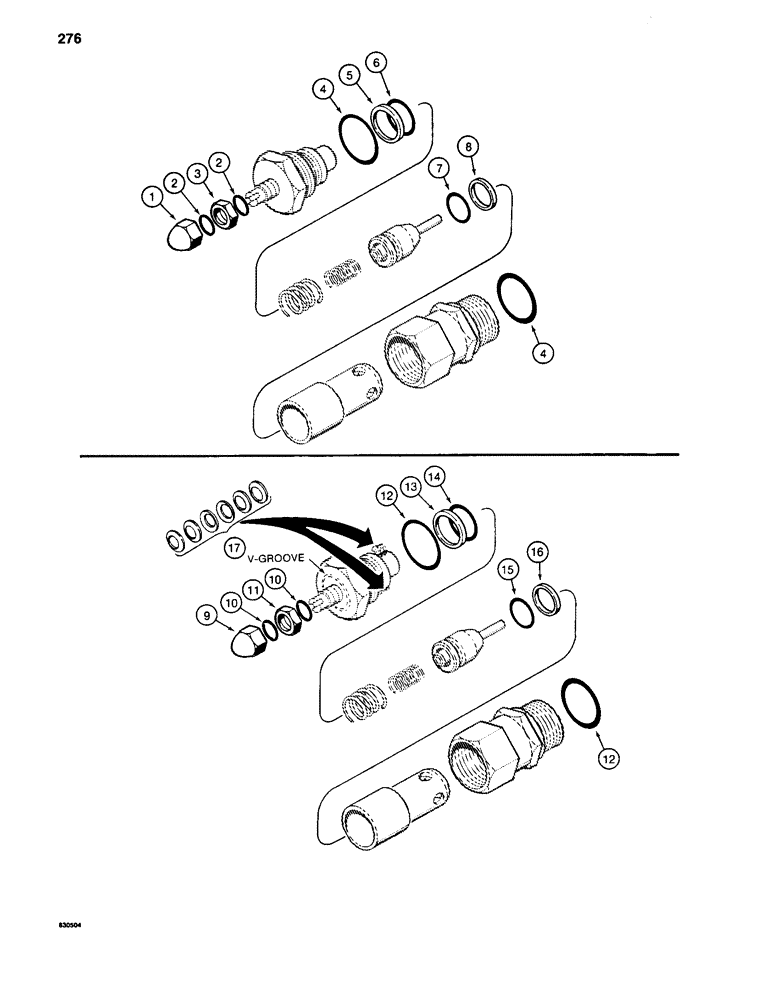

Запчасти Case 880C (276) - CIRCUIT RELIEF VALVES (07) - HYDRAULIC SYSTEM

S616867

VALVE

CIRCUIT RELIEF VALVE - cartridge assembly, complete, set at 3000 psi, Includes: Ref. 1 - 8

1шт.

S616868

VALVE

CIRCUIT RELIEF VALVE - cartridge assembly, complete, set at 2500 psi, Includes: Ref. 1 - 8

1шт.

1

S116073

CAP

DOME NUT - adjusting screw

1шт.

2

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- outer

2шт.

3

S116072

JAM NUT

JAM NUT - adjusting screw

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug to cartridge and cartridge to valve body

2шт.

Part of Seal Kit, P/N S117193

1шт.

5

S83071

BACK-UP RING

BACKUP RING - inner plug O-ring

1шт.

Part of Seal Kit, P/N S117193

1шт.

6

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

0-RING - inner plug

1шт.

Part of Seal Kit, P/N S117193

1шт.

7

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet

1шт.

Part of Seal Kit, P/N S117193

1шт.

8

S84098

BACK-UP RING,1/2" ID x 11/16" OD

BACKUP RING - poppet O-ring

1шт.

Part of Seal Kit, P/N S117193

1шт.

S117193

SEAL KIT

SEAL KIT - circuit relief valve, includes Refs. 4 - 8 above

1шт.

S616862

VALVE

CIRCUIT RELIEF VALVE - cartridge assembly, special R series complete, set at 3000 psi, Includes: Ref. 9 - 17

1шт.

Special R series circuit relief valves can be identified by the metal tag on the valve or the circle v_groove machined into the outer face of the plug.

1шт.

S616863

VALVE

CIRCUIT RELIEF VALVE - cartridge assembly, special R series complete, set at 2500 psi, Includes: Ref. 9 - 17

1шт.

Special R series circuit relief valves can be identified by the metal tag on the valve or the circle v_groove machined into the outer face of the plug.

1шт.

9

S116073

CAP

DOME NUT - adjusting screw, special R series circuit relief valve

1шт.

10

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- outer, special R series circuit relief valve

2шт.

11

S116072

JAM NUT

JAM NUT - adjusting screw, special R series circuit relief valve

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug to cartridge and cartridge to valve body, special R series circuit relief valve

2шт.

Part of Seal Kit, P/N S117193

1шт.

13

S83071

BACK-UP RING

BACKUP RING - inner plug O-ring, special R series circuit relief valve

1шт.

Part of Seal Kit, P/N S117193

1шт.

14

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- inner plug, special R series circuit relief valve

1шт.

Part of Seal Kit, P/N S117193

1шт.

15

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet, special R series circuit relief valve

1шт.

Part of Seal Kit, P/N S117193

1шт.

16

S84098

BACK-UP RING,1/2" ID x 11/16" OD

BACKUP RING - poppet O-ring, special R series circuit relief valve

1шт.

Part of Seal Kit, P/N S117193

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - spring, special R series circuit relief valve

12шт.

S117193

SEAL KIT

SEAL KIT - circuit relief valve, includes Refs. 12 - 16 above, special R series

1шт.
