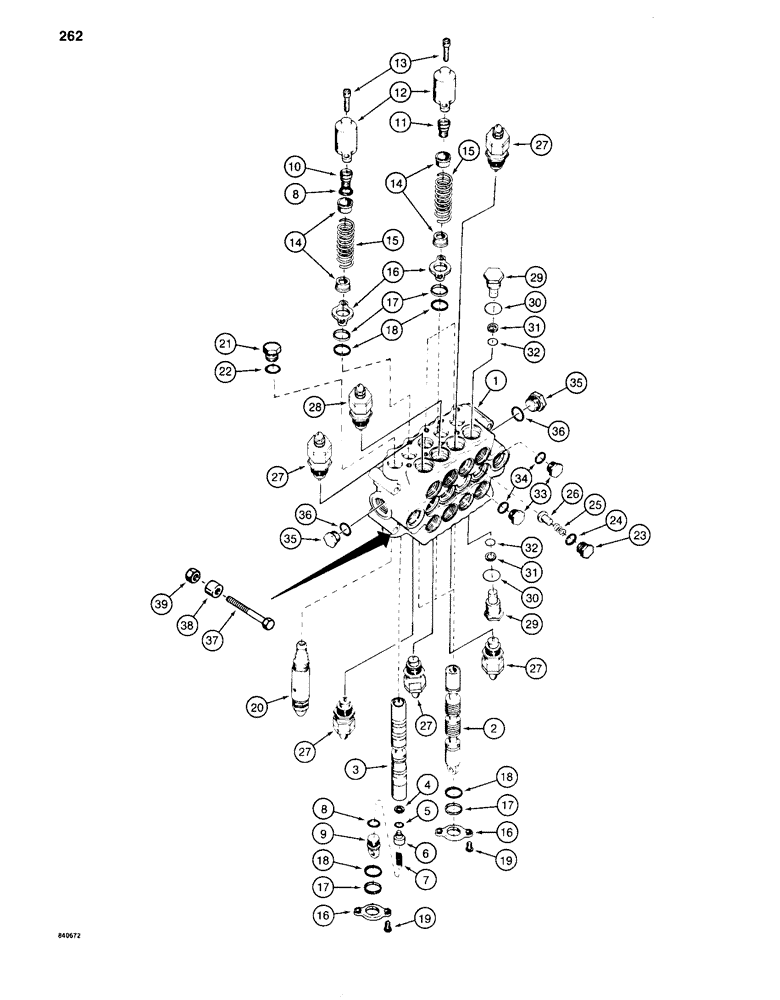

Запчасти Case 880C (262) - FOUR SPOOL VALVE - INSIDE (07) - HYDRAULIC SYSTEM

S514838

VALVE

CONTROL VALVE ASSEMBLY - inside, Includes: Ref. 1 - 36

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - left-hand and center

3шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - right-hand only

1шт.

4

S84098

BACK-UP RING,1/2" ID x 11/16" OD

BACKUP RING - right-hand spool

1шт.

5

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet, right-hand spool

1шт.

6

S62291

VALVE POPPET

POPPET - right-hand spool

1шт.

7

S62189

SPRING

- internal, right-hand spool

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, right-hand spool ends

2шт.

9

S62289

END

EYE - right-hand spool

1шт.

10

S62290

BOLT

- special, right-hand spool only

1шт.

11

S62292

BOLT

- special, left-hand and center spools

3шт.

12

S62278

CAP

- spool

4шт.

13

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - hex secket head, 3/8" - 16 NC x 1", grade 8

8шт.

14

S62288

SEAT

- spring

8шт.

15

S104822

SPRING

- spool centering

4шт.

16

S13829

PLATE

- seal retaining

8шт.

17

S62092

WIPER

- spool

8шт.

18

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- spool

8шт.

19

61-68

HEX SOC SCREW,3/8"-16 x 1/2"

BOLT - hex socket head, 3/8" - 16 NC x 1/2"

8шт.

20

S62112

CARTRIDGE

MAIN RELIEF VALVE - parts list Figure 274

1шт.

S105090

PLUG

ASSEMBLY - main relief valve, Includes: Ref. 21 and 22

1шт.

21

S13707

PLUG

- main relief valve

1шт.

22

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- plug

1шт.

S105089

PLUG

ASSEMBLY - check valve, Includes: Ref. 23 and 24

4шт.

23

S13714

PLUG

- check valve

1шт.

24

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- plug

1шт.

25

S13715

SPRING

- check valve

4шт.

26

S13716

VALVE POPPET

POPPET - check valve

4шт.

27

S616868

VALVE

CIRCUIT RELIEF VALVE - parts list Figure 276

5шт.

28

S616863

VALVE

CIRCUIT RELEIF VALVE - crowd circuit, rear port, parts list Figure 276

1шт.

Circuit relief valve locations are described for the E boom only. The Y boom crowd circuit relief valves are reserved.

1шт.

S514838

VALVE

CONTROL VALVE ASSEMBLY - inside, continued from figure 262, Includes: Ref. 29 - 36

1шт.

S81690

PLUG

ASSEMBLY - relief port, left-hand spool, Includes: Ref. 29 - 32

2шт.

29

NSS

NOT SOLD SEPARAT

PLUG - body

1шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug, outer

1шт.

31

S93829

BACK-UP RING,0.609" ID x 0.052" Width

BACKUP RING - plug, inner

1шт.

32

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- plug, inner

1шт.

33

273916

PLUG,Hex, 1-5/16" - 12 ORB

Outlet ports, LH spool, Includes Ref. 34 Hex Hd, 1 5/16"-12 ORB

1-2шт.

34

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

35

S62190

PLUG

- end ports, Includes: Ref. 36

2шт.

36

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

37

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

Used before PIN 6205456 Hex, 1/2"-13 x 4 3/4", G5

3шт.

37

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex head, 1/2" - 13 NC x 4-1/4", used on PIN 6205456 and after

3шт.

38

S113313

SPACER

- valve mounting, used before PIN 6205456 only

3шт.

39

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

3шт.
