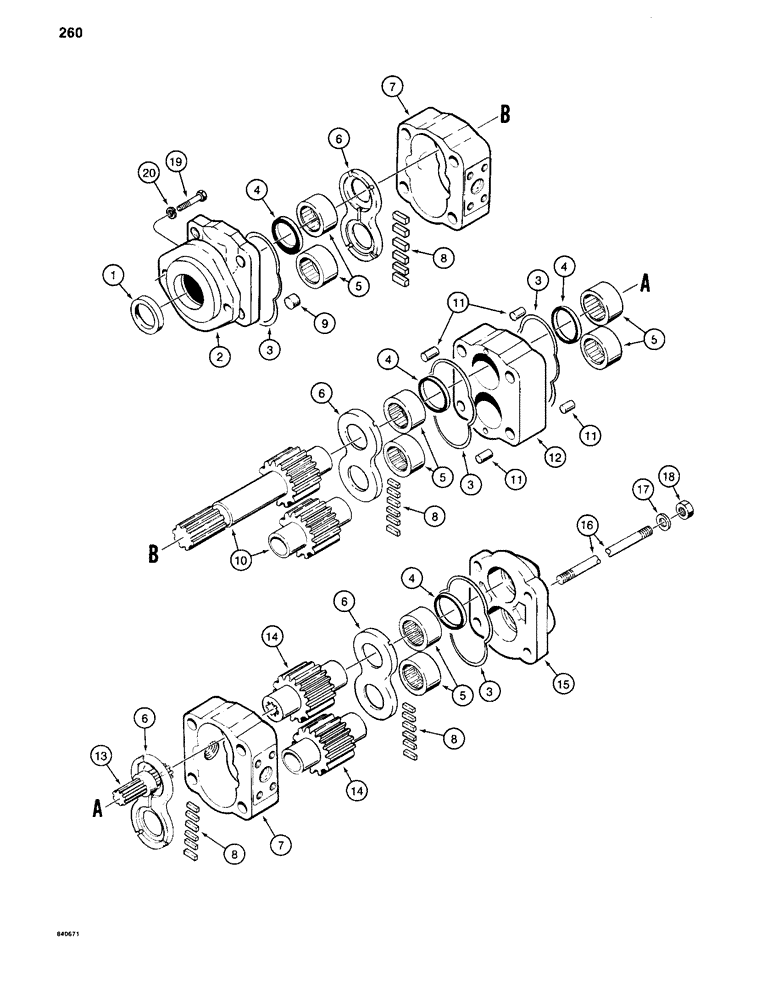

Запчасти Case 880C (260) - S512441 HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

S512441

PUMP

ASSEMBLY - main hydraulic, Includes: Ref. 1 - 18

1шт.

1

L32318

SEAL

- shaft, outer

1шт.

2

S113566

PUMP

COVER - front

1шт.

3

D41391

O-RING

GASKET - between sections

4шт.

4

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- shaft, inner

4шт.

5

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller type

8шт.

6

D70680

PLATE

- wear

4шт.

7

S114703

HOUSING

- gear

2шт.

8

L32099

SEAL

- pocket

24шт.

9

L32320

PLUG

- front cover

1шт.

10

S114704

GEAR

SET - front

1шт.

11

W16323

DOWEL

PIN - pump housing

8шт.

12

S113570

CARRIER

- center bearings

1шт.

12a

221-841

PLUG

- hex socket head, 1/4" NPT, in S113570 carrier, not shown

1шт.

13

L32324

SHAFT

- tie

1шт.

14

S113573

GEAR-SET

GEAR SET - rear

1шт.

15

D73613

COVER

- rear

1шт.

16

S76269

STUD

- retaining, pump

4шт.

17

D31957

WASHER

- special

4шт.

18

129-183

NUT,5/8"-11, G8

4шт.

19

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

20

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8", hardened

2шт.
