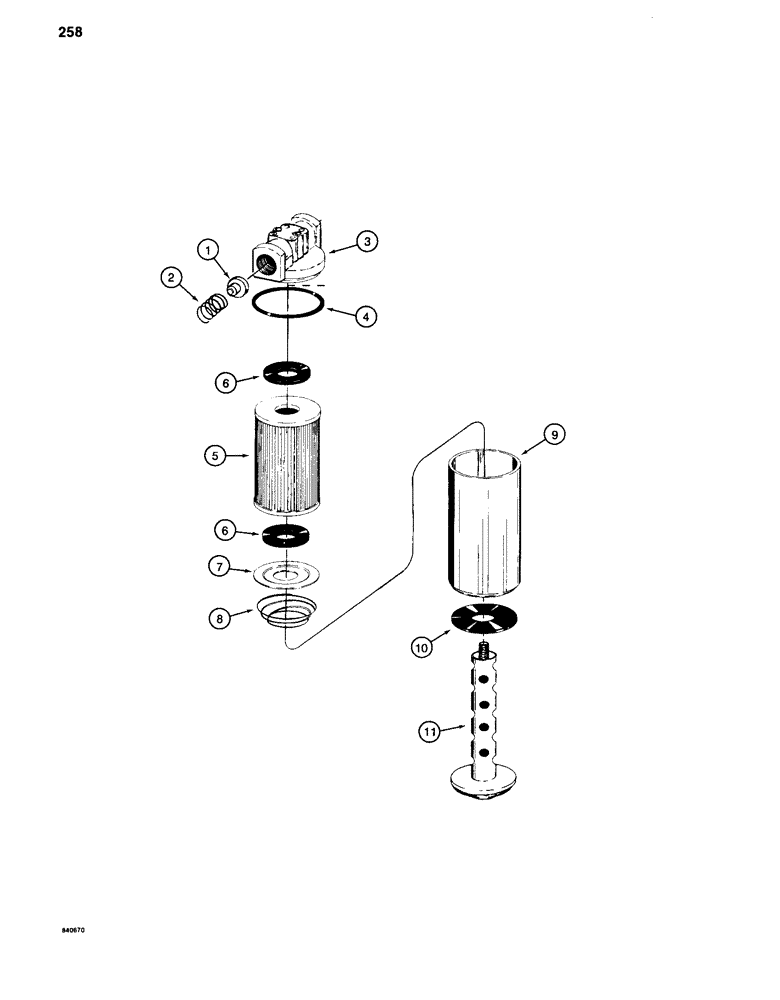

Запчасти Case 880C (258) - S209408 HYDRAULIC OIL FILTER, REAR FILTER BEFORE PIN 6205236 (07) - HYDRAULIC SYSTEM

S209408

FILTER

- hydraulic oil, 33 micron, Includes: Ref. 1 - 11

1шт.

1

D74434

VALVE POPPET

POPPET - relief valve

1шт.

2

D74435

SPRING

- relief valve

1шт.

3

NSS

NOT SOLD SEPARAT

HEAD - filter assembly

1шт.

4

T29789

SEALING RING,4.35" ID x 0.25" Width

O-RING - head to housing seal

1шт.

5

S62434

FILTER, ELEMENT

ELEMENT - 33 micron

1шт.

6

W12214

GASKET

- element

2шт.

7

T42195

WASHER

- backup

1шт.

8

T29793

SPRING

- conical

1шт.

9

T29794

HOUSING

- filter assembly

1шт.

10

T29795

GASKET

- lower

1шт.

11

T29796

SUPPORT

POST ASSEMBLY - center

1шт.
