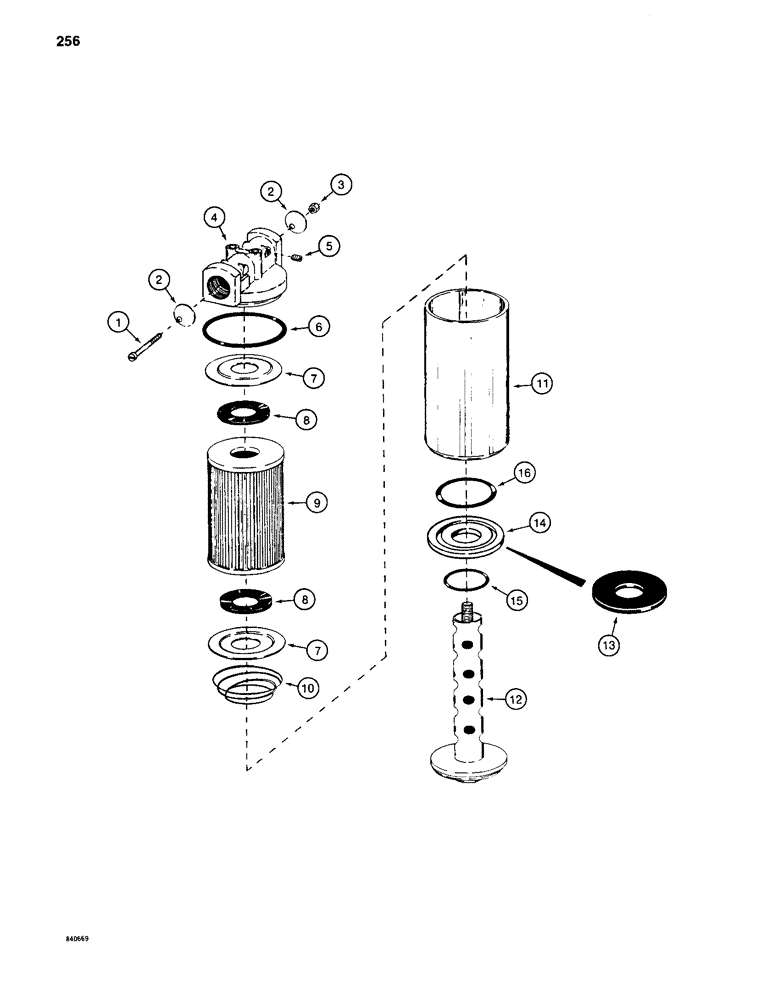

Запчасти Case 880C (256) - S613014 HYDRAULIC OIL FILTER, FRONT FILTER PIN 6205236 AND AFTER (07) - HYDRAULIC SYSTEM

S613014

FILTER

ASSEMBLY - hydraulic oil, 100 mesh screen, Includes: Ref. 1 - 16

1шт.

1

169-86

SCREW,Fil Hd, #8 - 32 x 1 3/4"

- fillister head, No. 8 - 32 NC x 1-3/4"

1шт.

2

T29785

VALVE

- bypass

2шт.

3

131-552

NUT,#8-32

NUT - hex, self-locking, No. 8 - 32 NC, special

1шт.

4

S60100

HEAD

- filter assembly

1шт.

5

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG - hex socket head, 3/8" NPT

1шт.

6

T29789

SEALING RING,4.35" ID x 0.25" Width

O-RING - head to housing seal

1шт.

7

T42195

WASHER

- back-up

2шт.

S233969

FILTER, ENGINE OIL

ELEMENT ASSEMBLY - filter, Includes: Ref. 8 and 9

1шт.

8

W12214

GASKET

- element

2шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - 100 mesh screen

1шт.

10

T29793

SPRING

- conical

1шт.

11

T29794

HOUSING

- filter assembly

1шт.

12

T29796

SUPPORT

POST ASSEMBLY - center

1шт.

13

T29795

GASKET

- lower, if used

1шт.

Production filters include Ref. 13. Service filters replace item 13 with Refs. 14-16.

1шт.

14

S235887

PLATE

- if used

1шт.

Production filters include Ref. 13. Service filters replace item 13 with Refs. 14-16.

1шт.

15

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- lower, if used

1шт.

Production filters include Ref. 13. Service filters replace item 13 with Refs. 14-16.

1шт.

16

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

- upper, if used

1шт.

Production filters include Ref. 13. Service filters replace item 13 with Refs. 14-16.

1шт.
