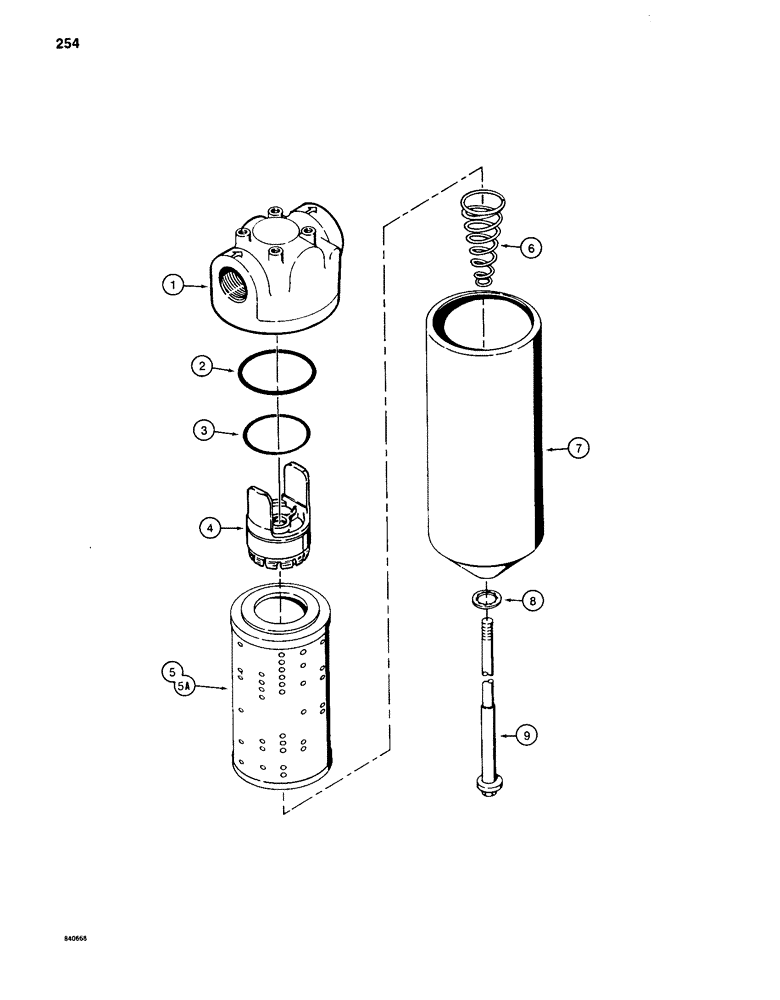

Запчасти Case 880C (254) - S227285 HYDRAULIC OIL FILTER, FRONT FILTER BEFORE PIN 6205236 AND AFTER (07) - HYDRAULIC SYSTEM

S227285

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, 10 micron

1шт.

S107788

HEAD ASSY.

HEAD ASSEMBLY - filter, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

S107789

O-RING

- head seal

1шт.

S107803

VALVE

ASSEMBLY - bypass, Includes: Ref. 3 and 4

1шт.

3

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- bypass valve

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

5

S107791

FILTER

ELEMENT - filter, 10 micron

1шт.

5a

S108971

ELEMENT

- special flushing, do not use for regular service, use to flush hydraulic system only, must be ordered separately, not shown

1шт.

6

S104930

SPRING

- filter housing

1шт.

7

S107792

HOUSING

- filter

1шт.

8

S107793

SEALING WASHER

WASHER - special

1шт.

9

S107794

BOLT

- special, filter tie

1шт.
