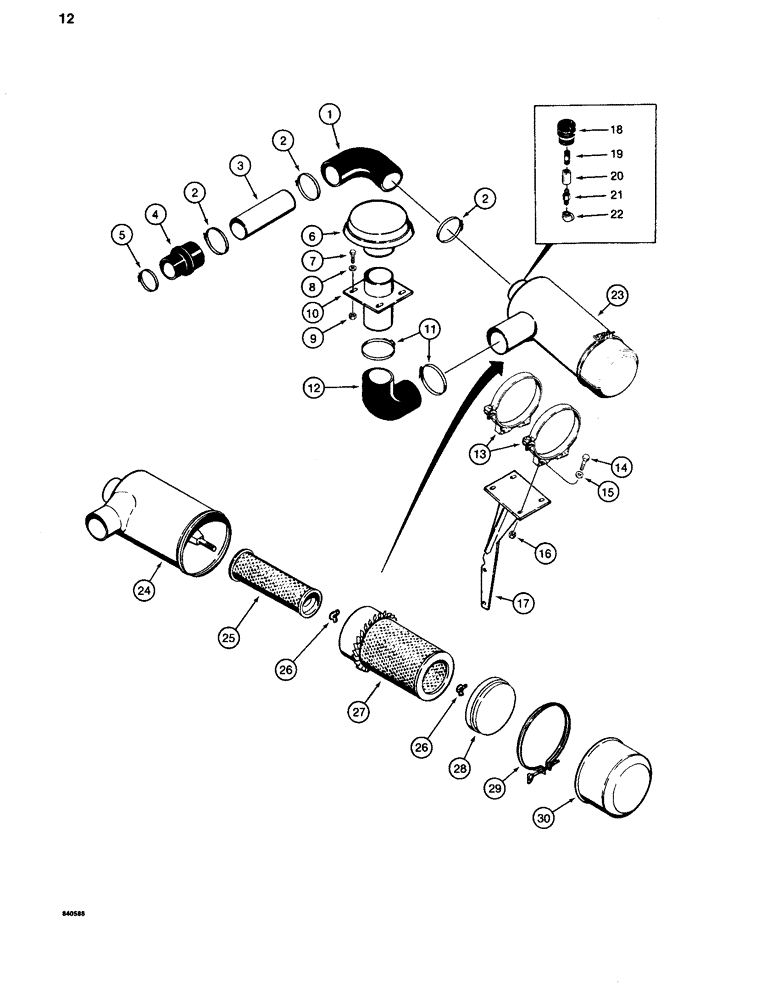

Запчасти Case 880C (012) - AIR CLEANER AND AIR INTAKE PARTS, BEFORE PIN 6205253 (01) - ENGINE

1

S80631

90 ELBOW,58.0 mm ID mm ID

ELBOW, 4.00" ID x 5.80", 90-Degree, Rubber

1шт.

2

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

- elbow and reducer

3шт.

3

S97708

TUBE,4" OD x 9" L

- air cleaner to engine

1шт.

4

A56094

HOSE

REDUCER - rubber

1шт.

5

214-359

CLAMP,#92, 3.75"-4.06", T-Bolt

- reducer to engine

1шт.

6

S512971

CAP

- rain

1шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

8

195-518

WASHER,1/4", SAE

- flat, 1/4"

4шт.

9

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

4шт.

10

S238896

BRACKET - rain cap mounting

1шт.

11

214-373

CLAMP,#124, 5.06"-4.75", T-Bolt

- elbow

2шт.

12

S111327

ELBOW

- 90 degree, rubber

1шт.

13

A149780

BAND

- air cleaner

2шт.

14

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

15

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2"

4шт.

16

231-1447

NUT,7/16"-14, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

17

S514510

BRACKET - air cleaner mounting

1шт.

18

A59568

INDICATOR

RESTRICTION INDICATOR - air cleaner

1шт.

19

221-111

PIPE,Nipple, 1/8" NPT x 3"

NIPPLE - 1/8" NPT x 3", restriction indicator line

1шт.

20

221-335

COUPLING,Pipe, 1/8" NPT

- Pipe, 1/8" NPT

1шт.

21

D36264

FITTING

- special, filter

1шт.

22

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- 90 degree, 1/8" NPT

1шт.

23

L101785

CLEANER

AIR CLEANER ASSEMBLY - complete, Includes: Ref. 24 - 31

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

25

S117746

AIR FILTER

ELEMENT - secondary, inner

1шт.

26

D78354

WING NUT

NUT - wing, steel, replaces nylon nut

2шт.

27

S117745

AIR CLEANER

ELEMENT - primary, outer

1шт.

28

A47059

BAFFLE

- dust cup

1шт.

29

NLS

NO LONGER SERVICED

CLAMP - body to dust cup

1шт.

30

S117747

CUP

- dust

1шт.

31

S113642

CAP

- 1/8" NPT, replaced with Refs. 18 - 22, not shown

1шт.
