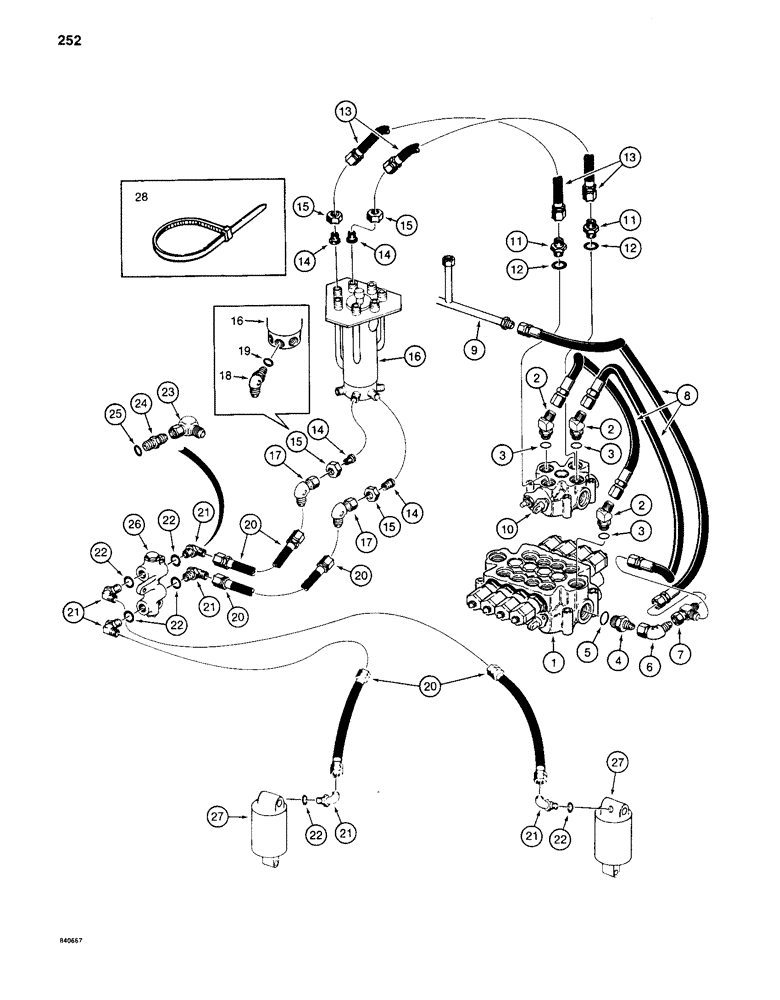

Запчасти Case 880C (252) - HYDRAULIC LEVELER LINES, MODELS WITH AUXILIARY CIRCUIT, PIN 6205456 AND AFTER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - outside, see Figures 266-272

1шт.

2

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, Includes: Ref. 3

3шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

4

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, outside valve, Incl. Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

6

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, adapter to tee

1шт.

7

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- leveler circuit

1шт.

8

S8628

HOSE

- one spool control valve circuit, 36" (914 mm) long

3шт.

9

S240550

TUBE - oil cooler circuit, see Figure 202

1шт.

10

S506349

VALVE

CONTROL VALVE - one spool, parts list Figure 278

1шт.

11

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, control valve ports, Includes: Ref. 12

2шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

13

S11231

HOSE ASSY.

HOSE - control valve to swivel, 68" (1727 mm) long

2шт.

14

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - reducer, at swivel

2-4шт.

15

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - sleeve, for 218-796 adapter

2-4шт.

16

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Figure 284

1шт.

17

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swivel bottom ports, if used

2шт.

18

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, used on models with female ports in swivel, Includes: Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

20

S11226

HOSE

- to check valve and cylinders 20" (508 mm) long

4шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, Includes: Ref. 22

4-6шт.

23

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, if used

2шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter, Straight, if used, Incl. Ref 25 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

26

REF

INSTRUCTION

CHECK VALVE - leveler, see Figures 286 - 290 for correct valve and components

1шт.

27

S56810

CYLINDER

- leveler, parts list Figure 304

2шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
