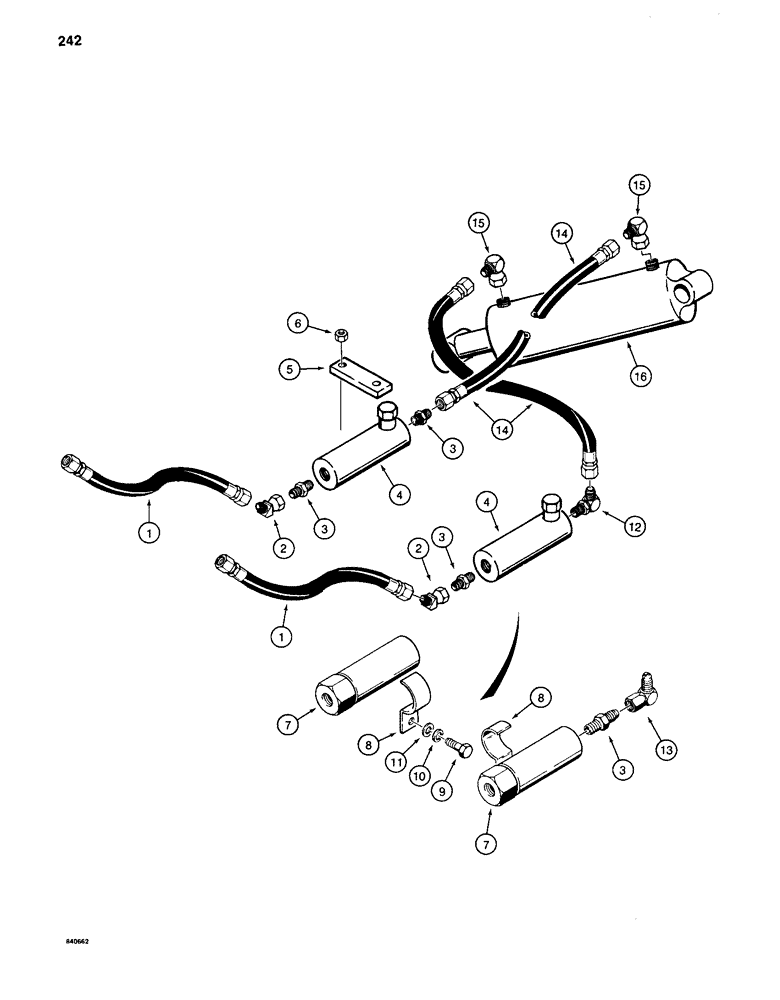

Запчасти Case 880C (242) - WRIST-O-TWIST HYDRAULIC LINES (07) - HYDRAULIC SYSTEM

1

S11236

HOSE ASSY.

HOSE - to flow control valve, 26" (660 mm) long

2шт.

2

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

2шт.

3

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, at valve

3-4шт.

4

S210358

LOCK VALVE

VALVE - flow control, used before PIN 6205339, parts list Figure 296

2шт.

5

S116466

PLATE - S210358 valve retaining

2шт.

6

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

7

T54632

VALVE

- flow control, used on PIN 6205339 and after, parts list Figure 298

2шт.

8

L32065

CLAMP

- T54632 valve

2шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8"

2шт.

12

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, used before PIN 6205339

1шт.

13

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, used on PIN 6205339 and after

2шт.

14

S11230

HOSE

- to cylinder, 28" (711 mm) long

2шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, at cylinder

2шт.

16

S37583

CYLINDER

- wrist-o-twist, parts list Figure 306

1шт.
