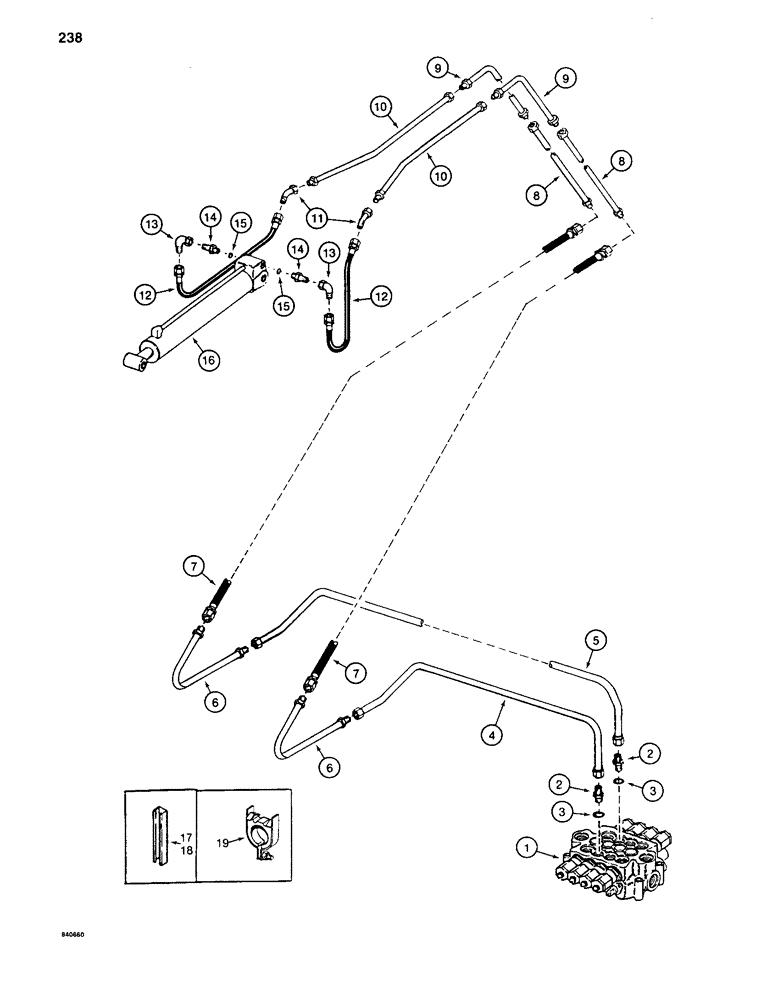

Запчасти Case 880C (238) - TOOL CYLINDER HYDRAULICS FOR Y BOOM, PIN 6205456 AND AFTER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - outside, see Figures 266-272

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, control valve ports, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

S515513

TUBE ASSY.,1" OD

TUBE - from front control valve port

1шт.

5

S515514

TUBE ASSY.,1" OD

TUBE - from rear control valve port

1шт.

6

S240515

TUBE ASSY.,1" OD x 21, 4.9" L

TUBE - tool cylinder lines

2шт.

7

S400834

HOSE

- tool cylinder lines, 36-1/2" (927 mm) long

2шт.

8

S218974

LINE,1" OD x 64.24" L

TUBE - tool cylinder lines

2шт.

9

S501882

TUBE - tool cylinder lines 1" OD x 13.92, 9" L

2шт.

10

S501883

TUBE - tool cylinder lines 1" OD x 73.5, 5.4" L

2шт.

11

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree

2шт.

12

D44752

HOSE

- to tool cylinder, 28" (711 mm) long

2шт.

13

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

at tool cylinder 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

14

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, long, Includes: Ref. 15

2шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

16

REF

INSTRUCTION

CYLINDER - tool, see Figure 302

1шт.

17

S98267

BRACKET

CHANNEL - tube clamp, 6" (152 mm) long

2шт.

18

S98413

SUPPORT

CHANNEL - tube clamp, 5" (127 mm) long

1шт.

19

S91602

CLAMP

- tube

1шт.
