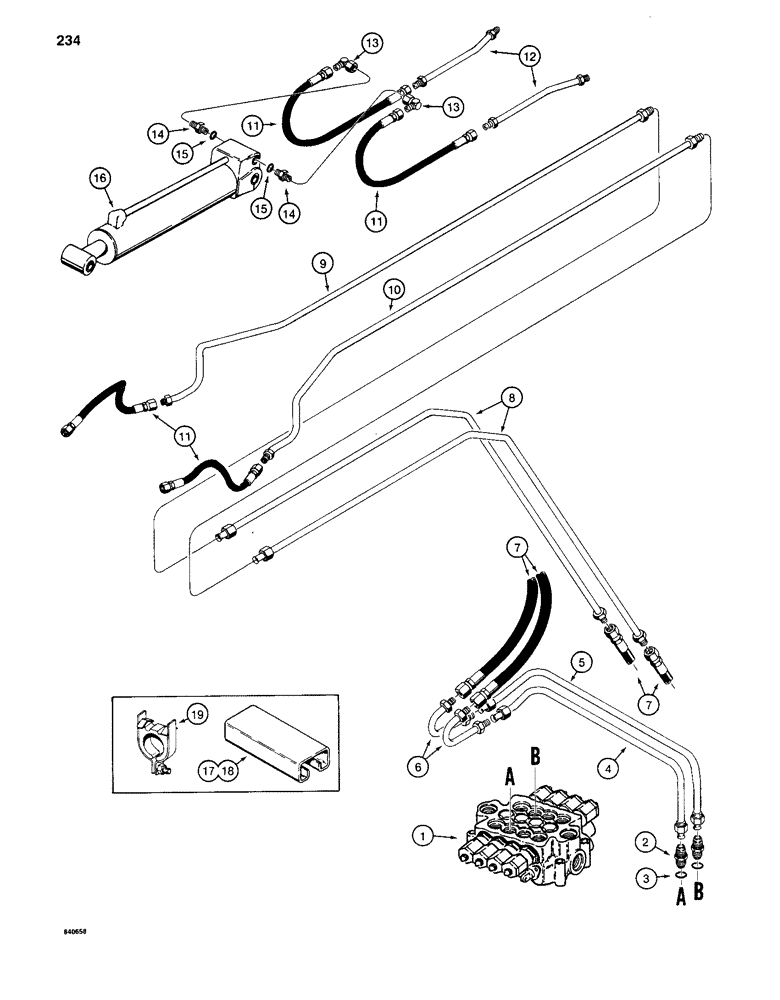

Запчасти Case 880C (234) - TOOL CYLINDER HYDRAULICS FOR E BOOM, PIN 6205456 AND AFTER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - outside, see Figures 266-272

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, control valve ports, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

S515513

TUBE ASSY.,1" OD

TUBE - from front control valve port

1шт.

5

S515514

TUBE ASSY.,1" OD

TUBE - from rear control valve port

1шт.

6

S240515

TUBE ASSY.,1" OD x 21, 4.9" L

TUBE - tool cylinder lines

2шт.

7

S400834

HOSE

- tool cylinder lines, 36-1/2" (927 mm) long

2шт.

8

S515520

LINE,1" OD x 86.1, 61.3" L

TUBE - tool cylinder lines

2шт.

9

S616480

TUBE ASSY.,1" OD

TUBE - tool cylinder line, right-hand

1шт.

10

S616481

TUBE ASSY.,1" OD

TUBE - tool cylinder line, left-hand

1шт.

11

D44752

HOSE

- tool cylinder lines, 28" (711 mm) long

4шт.

12

S211970

LINE,1" OD x 20.6, 1.75" L

TUBE - tool cylinder lines

2шт.

13

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

at tool cylinder 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 15

2шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

16

REF

INSTRUCTION

CYLINDER - tool, see Figure 302

1шт.

17

S98267

BRACKET

CHANNEL - tube clamp, 6" (152 mm) long

2шт.

18

S98413

SUPPORT

CHANNEL - tube clamp, 5" 9127 mm) long

1шт.

19

S91602

CLAMP

- tube

1шт.
