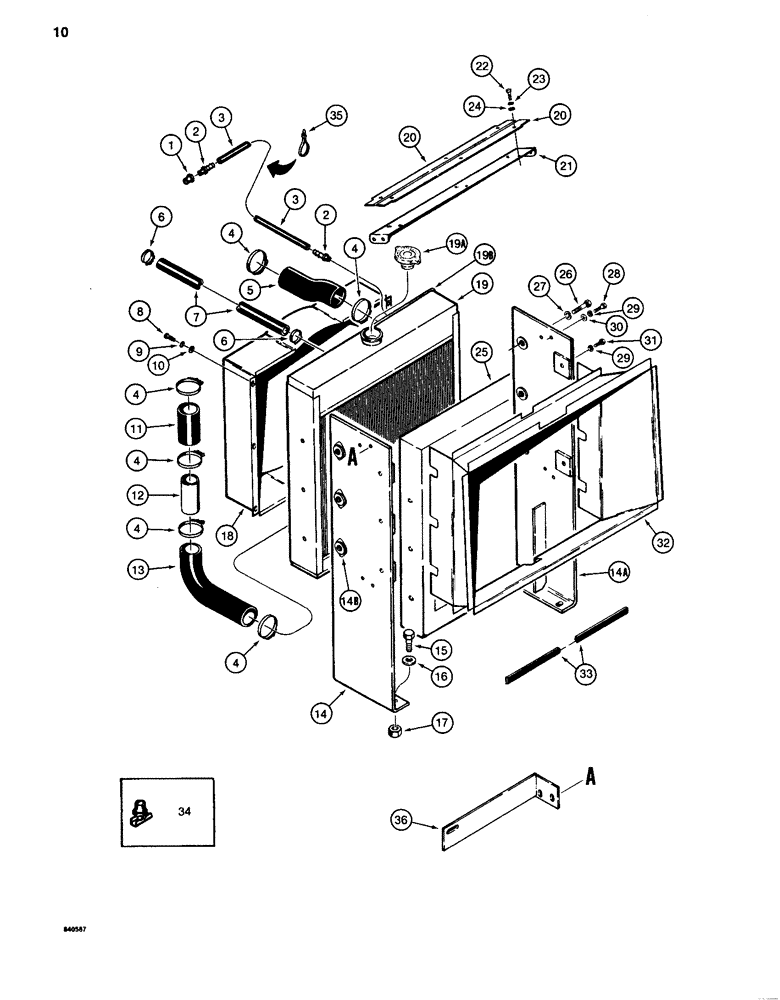

Запчасти Case 880C (010) - RADIATOR, OIL COOLER, AND HOSES (01) - ENGINE

1

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" NPT x 1/4" NPT, engine to barb fitting

1шт.

2

220-2

FITTING

BARB FITTING - straight, 1/4" NPT

2шт.

3

REF

INSTRUCTION

HOSE - 1/4" (6 mm) ID x 28" (711 mm) long, cut from S118378, see below

1шт.

4

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

6шт.

5

S239926

LARGE HOSE,2.50" ID x 10.00", SAE 20R4 SERIES,CLASS SC

RADIATOR HOSE, , Upper, Formed 2.50" ID x 10.00", SAE 20R4 SERIES,CLASS SC

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

7

REF

INSTRUCTION

HOSE - 1" (25 mm) ID x 51" (1295 mm) long, cut from S118438, see below

1шт.

8

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- machine, 1/4" - 20 NC x 1/2"

6шт.

9

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4"

6шт.

10

195-101

WASHER,3/16"

- flat, 1/4"

6шт.

11

S120031

HOSE - 2-1/2" (64 mm) ID x 4-1/2" (114 mm) cut from S118573, see below

1шт.

12

S221915

TUBE ASSY.,2.12, 1.75" L

TUBE - lower radiator hose

1шт.

13

L46257

RADIATOR HOSE,2.50" ID x 9.30", SAE 20R4 Class SC or D-1

Lower, Formed 2.50" ID x 9.30", SAE 20R4 Class SC or D-1

1шт.

14

S514502

BRACKET - rear, includes Ref. 14B

1шт.

14a

S514467

BRACKET - front, includes Ref. 14B

1шт.

14b

S222918

SHOCK ABSORBER

MOUNT - insulating

3шт.

15

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

16

S95569

WASHER

- flat, 1/2"

4шт.

17

131-492

NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

18

S615263

SHROUD

- radiator

1шт.

19

S514655

RADIATOR

ASSEMBLY - engine cooling, Includes: Ref. 19A and 19B

1шт.

19a

D25826

CAP

- radiator

1шт.

19b

NSS

NOT SOLD SEPARAT

HOSE - overflow, purchase locally

1шт.

20

S228755

STRIP - mounting bracket, upper and lower

4шт.

21

S238877

BRACKET - mounting, upper and lower

2шт.

22

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

12шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

12шт.

24

195-101

WASHER,3/16"

- flat, 1/4"

12шт.

25

S601957

COOLER

OIL COOLER - hydraulic oil

1шт.

26

S76819

STEP BOLT

BOLT - shoulder, special, Serial Range: radiator-brackets

6шт.

27

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER - lock, 7/16"

6шт.

28

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6-8шт.

28

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5

2шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

14шт.

30

195-102

WASHER,1/4"

- flat, 5/16"

8шт.

31

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex head, 5/16" - 18 NC x 7/8"

6шт.

32

S615265

SHROUD

- air intake

1шт.

33

REF

INSTRUCTION

MOULDING - 112" (2845 mm) long, cut from S118475, see below

1шт.

33

REF

INSTRUCTION

MOULDING - 50" (1270 mm) long, cut from S118475, see below

1шт.

34

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

36

S242476

BRACKET

- rear side only, if used

1шт.

S118378

HOSE,0.25" ID BULK, SAE 30R2 Type 3

0.25" ID x 168.00" Bulk, SAE 30R2 Type 3

1шт.

S118438

HOSE,1.00" ID x 120.00", SAE 20R1

- Bulk 1.00" ID x 120.00", SAE 20R1

1шт.

S118573

HOSE,2.50" ID x 72.00", SAE 20R1

- Bulk 2.50" ID x 72.00", SAE 20R1

1шт.

S118475

SEAL

MOULDING - bulk, 120" (3048 mm) long

1шт.
