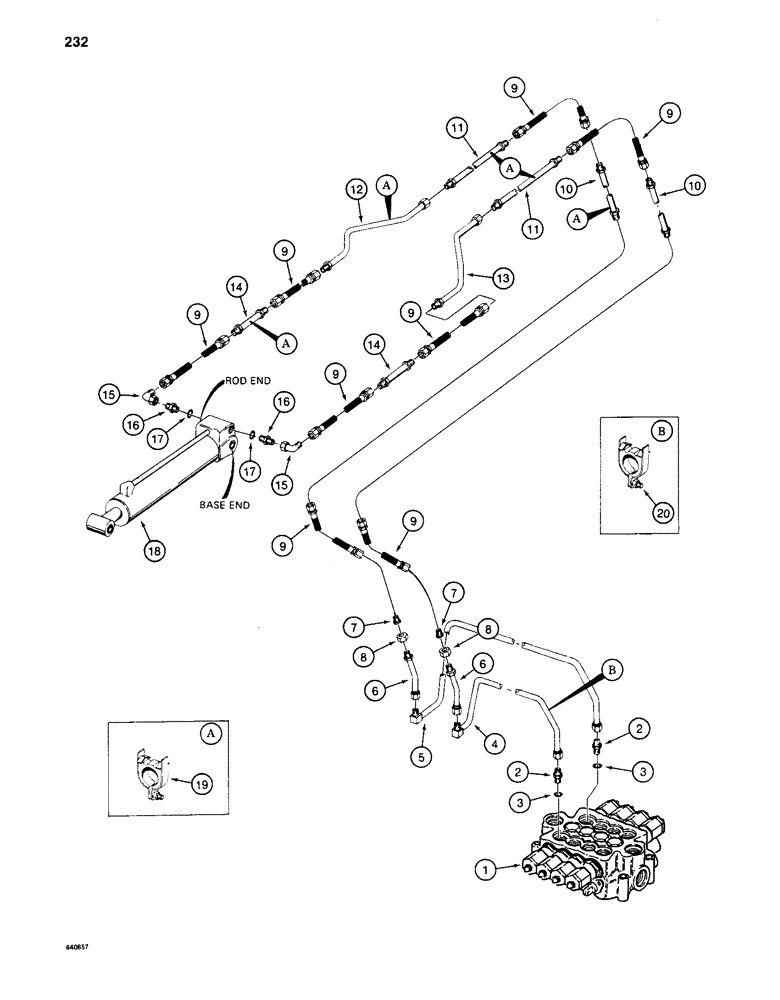

Запчасти Case 880C (232) - TOOL CYLINDER LINES FOR E BOOM, BEFORE PIN 6205456 (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - outside, see Figures 266-272

1шт.

The control valve shown is for models before PIN 6205236. On PIN 6205236 and after the second spool from the right is used for the tool cylinder circuit.

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, control valve ports, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

S515348

TUBE ASSY.,1.25" OD

TUBE - from front control valve port, used before PIN 6205236

1шт.

4

S514928

TUBE ASSY.,1.25" OD

TUBE - from front control valve port, used on PIN 6205236-6205455

1шт.

5

S515349

TUBE ASSY.,1.25" OD

TUBE - from rear control valve port, used before PIN 6205236

1шт.

5

S514929

TUBE ASSY.,1.25" OD

TUBE - from rear control valve port, used on PIN 6205236-6205455

1шт.

6

S240187

TURBINE,1.25" OD

TUBE - tool cylinder lines

2шт.

7

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducer, tube

2шт.

8

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - sleeve, for 218-797 adapter

2шт.

9

D44752

HOSE

- tool cylinder lines

8шт.

10

S207637

LINE,1" OD x 61.12" L

TUBE - tool cylinder lines

2шт.

11

S208722

LINE,1" OD x 116" L

TUBE - tool cylinder lines

2шт.

12

S502506

LINE,1" OD

TUBE - tool cylinder line, right-hand

1шт.

13

S502507

LINE,1" OD

TUBE - tool cylinder line, left-hand

1шт.

14

S211975

LINE,1" OD x 13.5" L

TUBE - tool cylinder lines

2шт.

15

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

at tool cylinder 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

16

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 17

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

18

REF

INSTRUCTION

CYLINDER - tool, see Figure 302

1шт.

19

S91602

CLAMP

- tube, for 1" OD tube

1шт.

20

S93266

CLAMP

- tube, for 1-1/4" OD tube

2шт.
