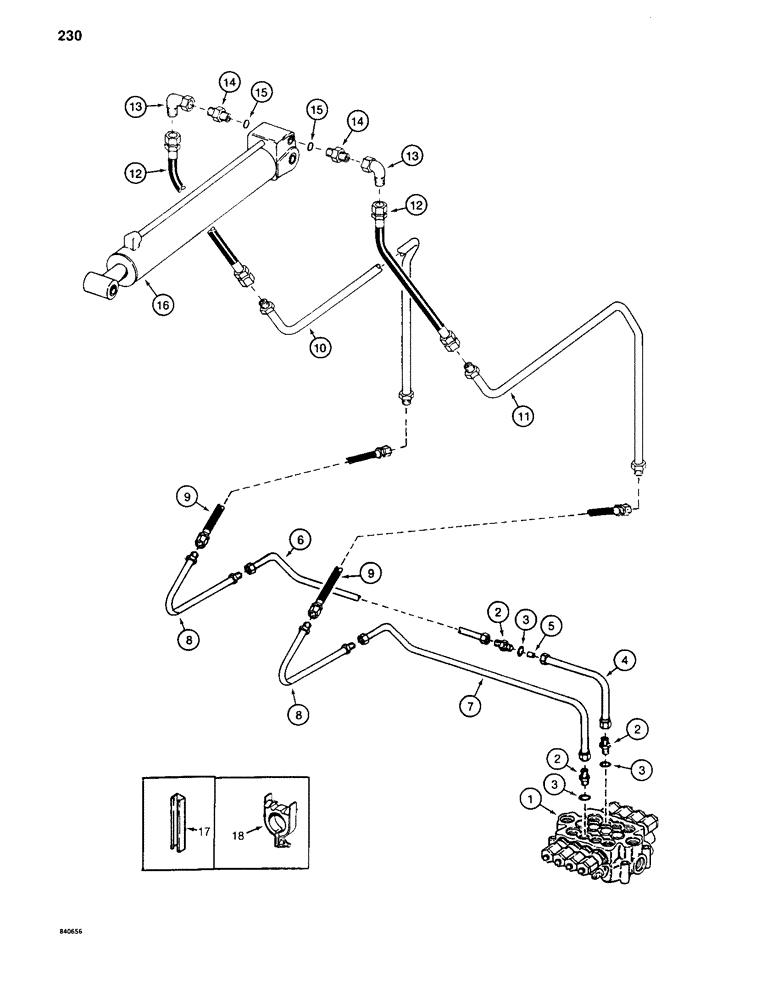

Запчасти Case 880C (230) - ARM CYLINDER HYDRAULICS FOR Y BOOM, PIN 6205456 AND AFTER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - inside, see Figures 262-264

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 3

3шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

S240516

TUBE - from rear control valve port 1" OD x 8.5, 9.5" L

1шт.

5

D56252

FITTING

RESTRICTOR - hydraulic oil flow

1шт.

6

S240517

TUBE ASSY.,1" OD

TUBE - from rear control valve port

1шт.

7

S515512

TUBE ASSY.,1" OD

TUBE - from front control valve port

1шт.

8

S240515

TUBE ASSY.,1" OD x 21, 4.9" L

TUBE - arm cylinder lines

2шт.

9

S400834

HOSE

- arm cylinder lines, 36-1/2" (927 mm) long

2шт.

10

S515522

TUBE ASSY.,1" OD

TUBE - arm cylinder line, right-hand

1шт.

11

S515521

TUBE ASSY.,1" OD

TUBE - arm cylinder line, left-hand

1шт.

12

D44752

HOSE

- to arm cylinder, 28" (711 mm) long

2шт.

13

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

at arm cylinder 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 15

2шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

16

REF

INSTRUCTION

CYLINDER - arm, see Figure 300

1шт.

17

S98267

BRACKET

CHANNEL - tube clamp

2шт.

18

S91602

CLAMP

- tube

1шт.
