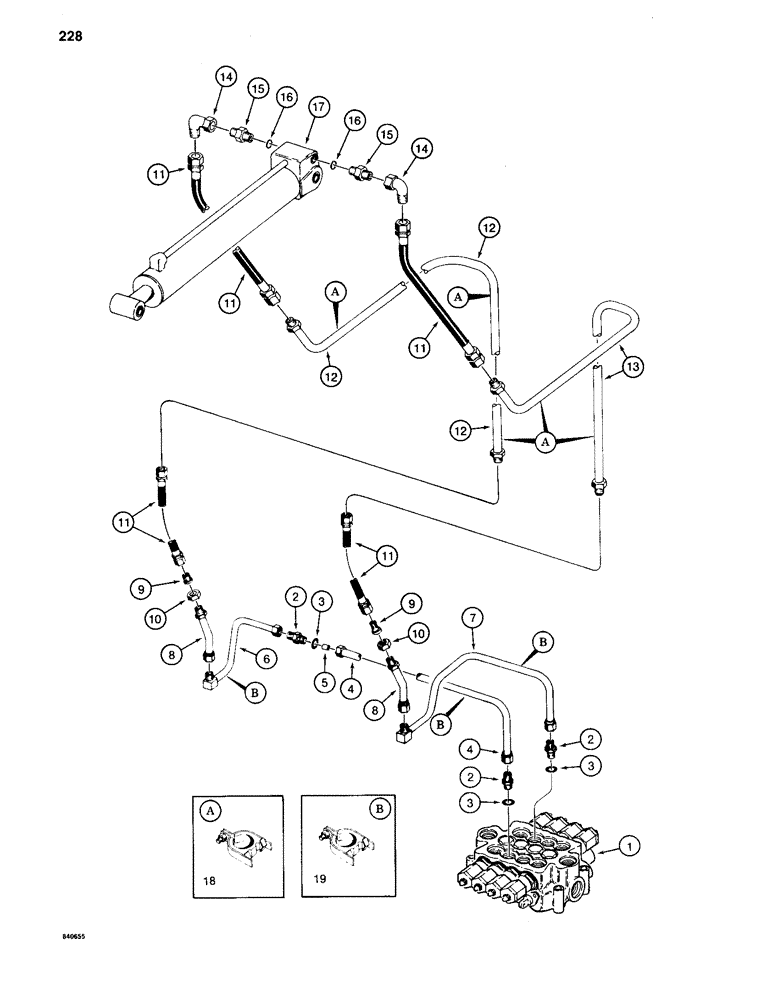

Запчасти Case 880C (228) - ARM CYLINDER LINES FOR Y BOOM, BEFORE PIN 6205456 (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - inside, see Figures 262-264

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 3

3шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

S240202

TUBE ASSY.,1.25" OD x 19, 9.1" L

TUBE - from front control valve port

1шт.

5

D56252

FITTING

RESTRICTOR - hydraulic oil flow

1шт.

6

S515352

TUBE ASSY.,1.25" OD

TUBE - from front control valve port

1шт.

7

S515347

TUBE ASSY.,1.25" OD

TUBE - from rear control valve port

1шт.

8

S240187

TURBINE,1.25" OD

TUBE - arm cylinder lines

2шт.

9

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducer, tube

2шт.

10

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - sleeve, for 218-797 adapter

2шт.

11

D44752

HOSE

- to arm cylinder, 28" (711 mm) long

4шт.

12

S502586

TUBE - arm cylinder line, right-hand 1" OD

1шт.

13

S502585

tube - arm cylinder line, left-hand 1" OD

1шт.

14

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

at arm cylinder 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 16

2шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

17

REF

INSTRUCTION

CYLINDER - arm, see Figure 300

1шт.

18

S91602

CLAMP

- tube, for 1" OD tube

4шт.

19

S93266

CLAMP

- tube, for 1-1/4" OD tube

3шт.
