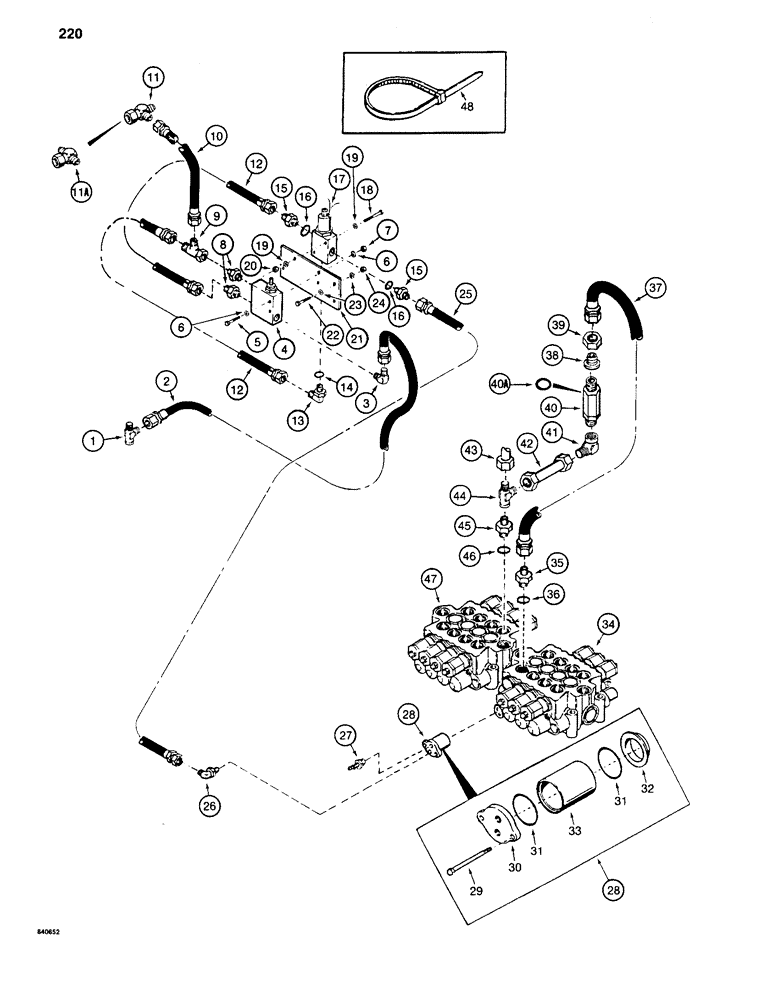

Запчасти Case 880C (220) - FAST HOIST LINES, PIN 6205456 AND AFTER (07) - HYDRAULIC SYSTEM

1

S114909

TEE

- at track brake valve, between Refs. 8 and 9 on Figure 184

1шт.

2

S99421

HOSE ASSY.

HOSE - brake valve to pressure reducing valve, 23" (584 mm) long

1шт.

3

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

1шт.

4

S236348

VALVE

- pressure reducing, parts list Figure 292

1шт.

5

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

6

195-103

WASHER,5/16"

- flat, 5/16"

4шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

8

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

2шт.

9

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

top port 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

10

S241219

HOSE ASSY.

HOSE - to reservoir drain tube, 50" (1270 mm) long

1шт.

11

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

at drain tube, if used 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

11a

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

- at drain tube, if used

1шт.

12

S77121

HOSE

- to solenoid valve, 20" (508 mm) long

2шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, bottom port of solenoid valve, Includes: Ref. 14

1шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, side ports of solenoid valve, Incl. Ref. 16

2шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

17

S237789

VALVE

- solenoid, parts list Figure 294

1шт.

18

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

19

195-516

WASHER,#12

- flat, 1/4"

4шт.

20

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

21

S236354

BRACKET - valve mounting

1шт.

22

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4"

2шт.

23

195-103

WASHER,5/16"

- flat, 3/8"

4шт.

24

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

25

S241219

HOSE ASSY.

HOSE - to fast hoist spool, 50" (1270 mm) long

1шт.

26

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, at fast hoist spool

1шт.

27

D46258

PLUG

SCREW - bleeder, at fast hoist spool

1шт.

28

S232345

KIT

- spool end cap, Includes: Ref. 29 - 33

1шт.

29

61-652

CAPSCREW,3/8" - 16 x 3 1/4"

BOLT - hex socket head, 3/8" - 16 NC x 3-1/4"

2шт.

30

S111269

HEAD

CAP - end

1шт.

31

S6394

O-RING

- tube

2шт.

32

S111267

WASHER

- retainer

1шт.

33

S111268

SLEEVE

- spool end

1шт.

34

REF

INSTRUCTION

CONTROL VALVE - inside, see Figures 262-264

1шт.

35

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, fast hoist port, Incl. Ref. 36

1шт.

36

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

37

S400834

HOSE

- inside valve to outside valve, 36" (914 mm)

1шт.

38

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducer, hose to check valve

1шт.

39

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - sleeve, for 218-797 adapter

1шт.

40

S93154

VALVE

CHECK VALVE - fast hoist line, Includes: Ref. 40A

1шт.

40a

A13084

O-RING,12.37" ID x 1.443" OD x 0.103"

- valve body to valve fitting

1шт.

41

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree

1шт.

42

S209876

TUBE ASSY.,1" OD x 3" L

TUBE - to main hoist connection

1шт.

43

S240513

TUBE ASSY.,1" OD x 8.5, 8.4" L

TUBE - main hoist line

1шт.

44

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- hoist and fast hoist tubes

1шт.

45

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, hoist port, Incl. Ref. 46

1шт.

46

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

47

REF

INSTRUCTION

CONTROL VALVE - outside, see Figures 266-272

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
