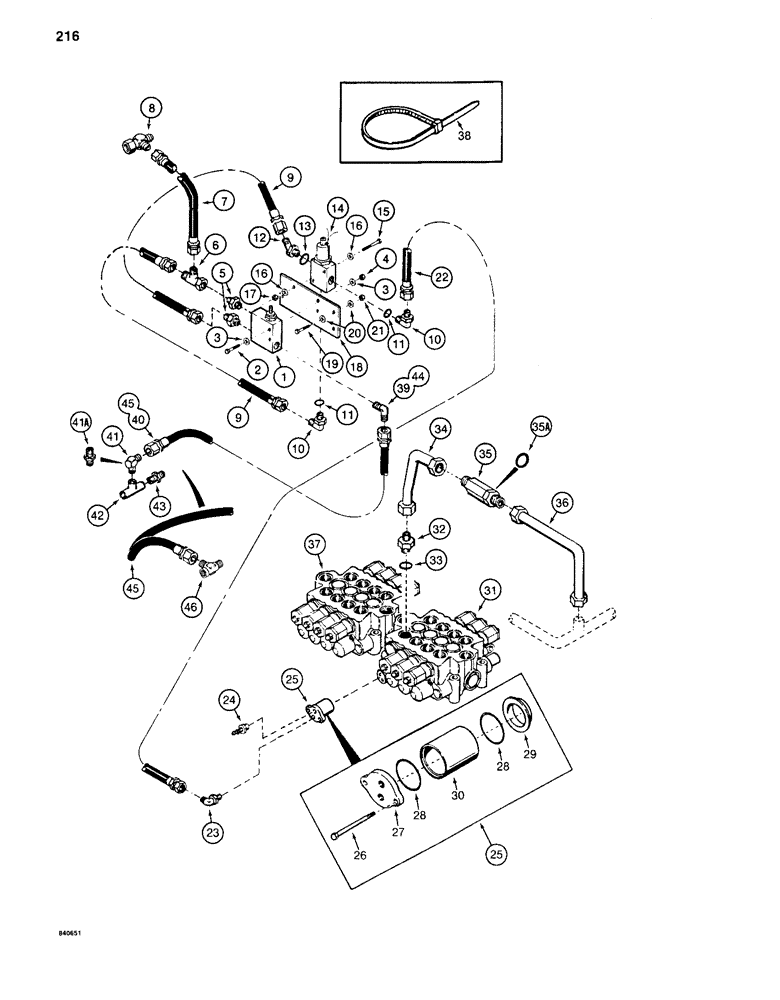

Запчасти Case 880C (216) - FAST HOIST LINES, BEFORE PIN 6205456 (07) - HYDRAULIC SYSTEM

1

S236348

VALVE

- pressure reducing, parts list Figure 292

1шт.

2

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

3

195-102

WASHER,1/4"

- flat, 5/16"

4шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

5

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

2шт.

6

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

top port 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

7

S241219

HOSE ASSY.

HOSE - to reservoir drain tube, 50" (1270 mm) long

1шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

at drain tube 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

9

S77121

HOSE

- to solenoid valve, 20" (508 mm) long

2шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, at solenoid valve, Includes: Ref. 11

2шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

12

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, at solenoid valve, Includes: Ref. 13

1шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

14

S237789

VALVE

- solenoid, parts list Figure 294

1шт.

15

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

16

195-516

WASHER,#12

- flat, 1/4"

4шт.

17

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

18

S236354

BRACKET - valve mounting

1шт.

19

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

20

195-103

WASHER,5/16"

- flat, 3/8"

4шт.

21

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

22

S241219

HOSE ASSY.

HOSE - to fast hoist spool, 50" (1270 mm) long

1шт.

23

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, at fast hoist spool

1шт.

24

D46258

PLUG

SCREW - bleeder, at fast hoist spool

1шт.

25

S232345

KIT

- spool end cap, Includes: Ref. 26 - 30

1шт.

26

61-652

CAPSCREW,3/8" - 16 x 3 1/4"

BOLT - hex socket head, 3/8" - 16 NC x 3-1/4"

2шт.

27

S111269

HEAD

CAP - end

1шт.

28

S6394

O-RING

- tube

2шт.

29

S111267

WASHER

- retainer

1шт.

30

S111268

SLEEVE

- spool end

1шт.

31

REF

INSTRUCTION

CONTROL VALVE - inside, see Figures 262-264

1шт.

32

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, at fast hoist port, Incl. Ref. 33

1шт.

33

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

34

S240189

TUBE ASSY.,1.25" OD

TUBE - from fast hoist port

1шт.

35

S93154

VALVE

CHECK VALVE - fast hoist line, Includes: Ref. 35A

1шт.

35a

A13084

O-RING,12.37" ID x 1.443" OD x 0.103"

- valve body to valve fitting

1шт.

36

S236304

TUBE,1.25" OD x 4.3, 9.05" L

- to main hoist line

1шт.

37

REF

INSTRUCTION

CONTROL VALVE - outside, see Figures 266-272

1шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

39

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, at pressure reducing valve, parts used before P.I.N. 6205236

1шт.

40

S11226

HOSE

- to pressure reducing valve, 20" (508 mm) long, parts used before P.I.N. 6205236

1шт.

41

218-1055

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

- 90 degree, if used, parts used before P.I.N. 6205236

1шт.

41a

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, if used, parts used before P.I.N. 6205236

1шт.

42

217-1161

TEE,1/4"-18 Female

- at control valve, parts used before P.I.N. 6205236

1шт.

43

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE), Parts used before P.I.N. 6205236 1/4"-18 NPTF

1шт.

44

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree, at pressure reducing valve, parts used on 6205236 through 6205456

1шт.

45

S99421

HOSE ASSY.

HOSE - to pressure reducing valve, 23" (584 mm) long, parts used on 6205236 through 6205456

1шт.

46

S114909

TEE

- at control valve, parts used on 6205236 through 6205456

1шт.
