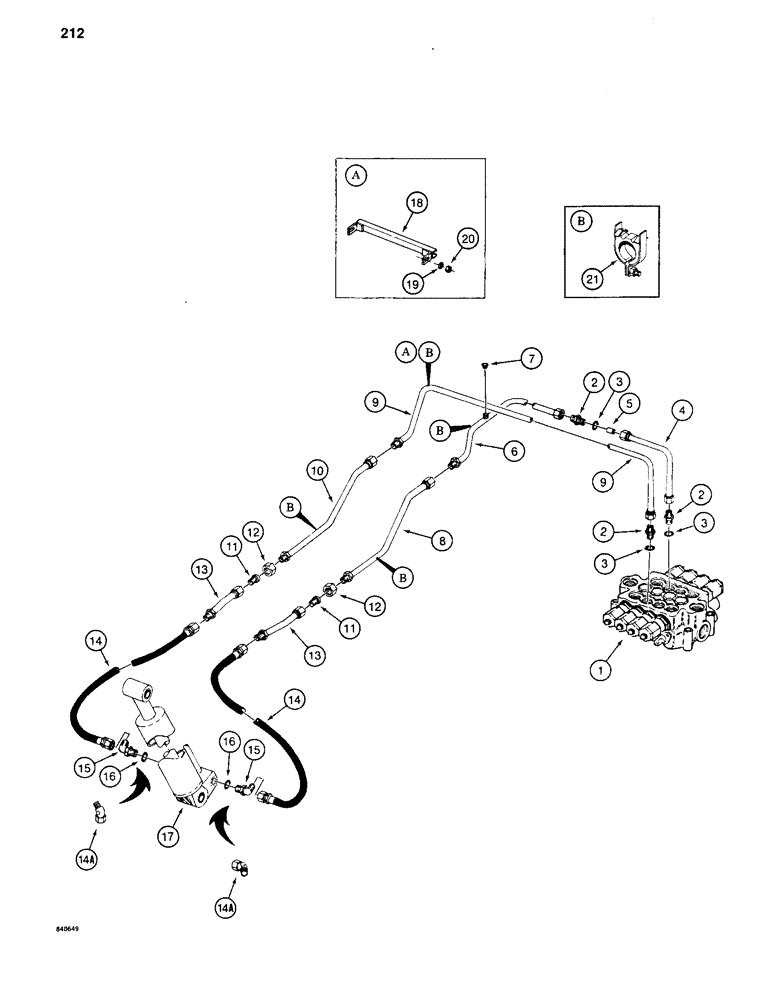

Запчасти Case 880C (212) - BOOM CYLINDER LINES, BEFORE PIN 6205456 (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - outside, see Figures 266-272

1шт.

The control valve shown is for models before PIN 6205236. On PIN 6205236 and after the right-hand spool is used for the boom cylinder circuit.

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 3

3шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

S240203

TUBE ASSY.,1.25" OD

TUBE - from rear control valve port

1шт.

5

D56252

FITTING

RESTRICTOR - hydraulic oil flow

1шт.

6

S515353

TUBE ASSY.,1.25" OD

TUBE - from rear control valve port, used before PIN 6205236

1шт.

6

S514930

TUBE ASSY.,1.25" OD x 21.47, 15.92" L

TUBE - from rear control valve port, used on PIN 6205236-6205455

1шт.

7

218-758

CAP,37 Degree, 1 5/16"-12

- tube, not used when fast hoist is used

1шт.

8

S502085

TUBE - from rear control valve port 1.25" OD

1шт.

9

S515350

TUBE ASSY.,1.25" OD

TUBE - from front control valve port, used before PIN 6205236

1шт.

9

S514931

TUBE - from front control valve port, used on PIN 6205236-6205455 1.25" OD

1шт.

10

S515351

TUBE ASSY.,1.25" OD

TUBE - from front control valve port

1шт.

11

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducer, tube

2шт.

12

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - sleeve, for 218-797 adapter

2шт.

13

S211969

LINE,1" OD x 6.4, 1.5" L

TUBE - boom cylinder lines

2шт.

14

D44752

HOSE

- to boom cylinder, 28" (711 mm) long

2шт.

14a

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree, used with Y boom only

2шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, at boom cylinder, Incl. Ref. 16

2шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

17

REF

INSTRUCTION

CYLINDER - boom, see Figure 300

1шт.

18

S226021

BRACKET - tube clamps

1шт.

19

S95569

WASHER

- flat, 1/2", hardened

2шт.

20

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

21

S93266

CLAMP

- tube

4шт.
