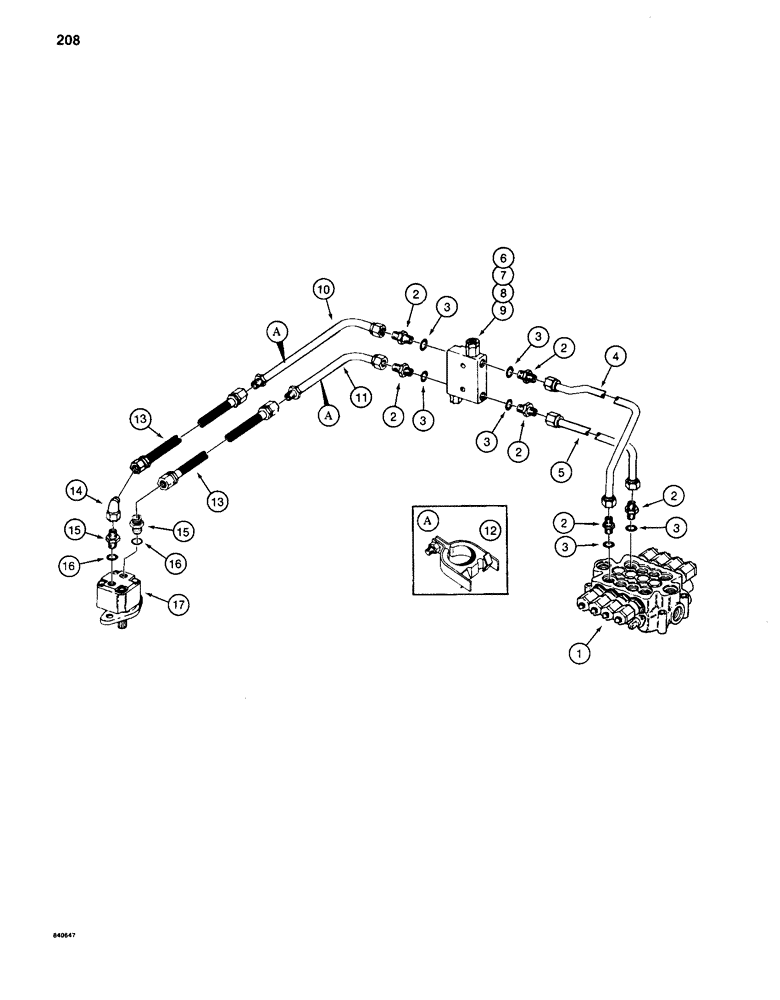

Запчасти Case 880C (208) - SWING MOTOR HYDRAULIC CIRCUIT, BEFORE PIN 6205456 (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - inside, see Figures 262-264

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, at control valve and relief valve ports

6шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

S515346

TUBE ASSY.,1.25" OD

TUBE - from front control valve port

1шт.

5

S240199

TUBE ASSY.,1.25" OD x 17.43, 5.3" L

TUBE - from rear control vlave port

1шт.

6

S236820

VALVE

RELIEF VALVE - crossover, parts list Figure 280

1шт.

7

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

8

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 5/16", hardened

2шт.

9

131-462

NUT,5/16"-18

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

10

S240201

TUBE ASSY.,1.25" OD x 14, 5" L

TUBE - from top port of relief valve

1шт.

11

S240200

TUBE ASSY.,1.25" OD x 12.5, 5" L

TUBE - from bottom port of relief valve

1шт.

12

S93266

CLAMP

- tube

2шт.

13

S8628

HOSE

- to swing motor, 36" (914 mm) long

2шт.

14

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree

1шт.

15

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., swing motor ports, Incl. Ref. 16

2шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

0-RING - adapter

1шт.

17

S33530

MOTOR

- swing, hydraulic, parts list Figure 282

1шт.
