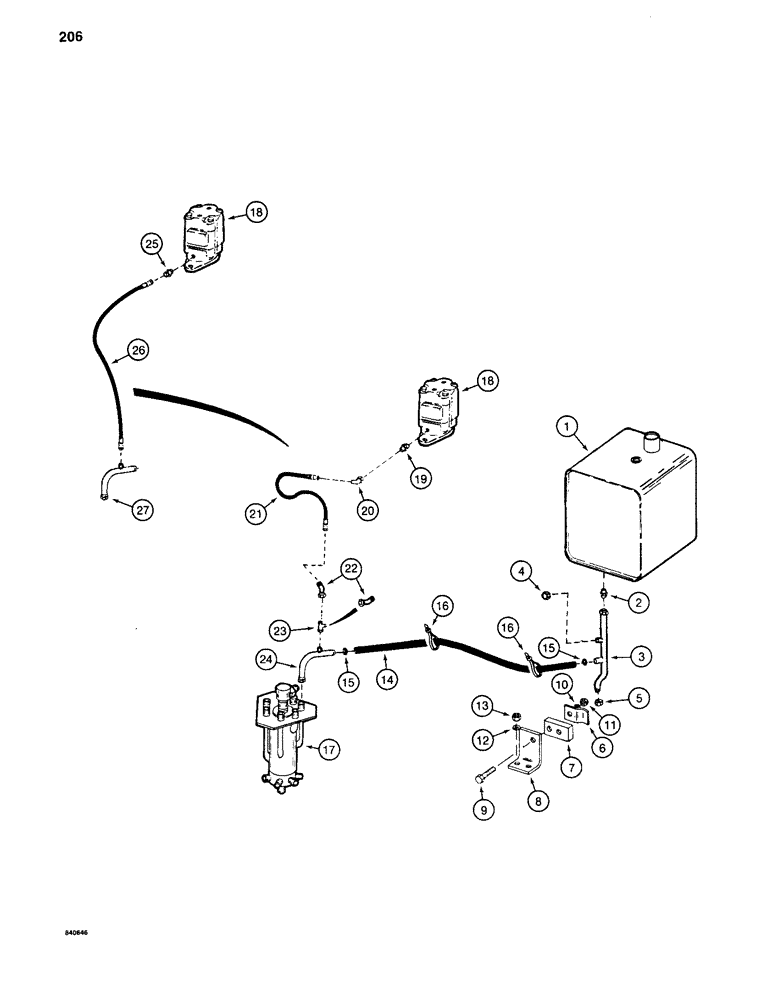

Запчасти Case 880C (206) - HYDRAULIC DRAIN LINES (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

RESERVOIR - hydraulic oil, see Figure 200

1шт.

2

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, reservoir bottom

1шт.

3

S514505

TUBE - reservoir drain

1шт.

4

218-754

CAP,37 Degree, 9/16"-18

Tube, upper inlet port, if used 37º, 9/16"-18

1шт.

5

218-758

CAP,37 Degree, 1 5/16"-12

- reservoir drain

1шт.

6

L36065

VALVE

CLAMP - drain tube

1шт.

7

S79936

BLOCK - spacer

1шт.

8

S92081

BRACKET

- clamp support

1шт.

9

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

10

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8"

1шт.

11

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

12

S95569

WASHER

- flat, 1/2", hardened

2шт.

13

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

14

REF

INSTRUCTION

HOSE - drain, from swivel tube, 63" (1600 mm) long, cut from S118383, see below

1шт.

15

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose

2шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Figure 284

1шт.

18

S33530

MOTOR

SWING MOTOR - parts list Figure 282

1шт.

19

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, motor drain port, swing before P.I.N. 6205236

1шт.

20

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, swing motor drain before P.I.N. 6205236

1шт.

21

S73647

HOSE - motor drain, 22" (559 mm) long, swing before P.I.N. 6205236

1шт.

22

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

Swing motor drain before P.I.N. 6205236 45º, 3/4"-16, 37º x 3/4"-16, 37º Fem Sw

2шт.

23

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- at swivel tube, swing motor drain before P.I.N. 6205236

1шт.

24

S236377

TUBE,1" OD x 3.8, 5.05" L

- at swivel port No. 1, swing motor drain before P.I.N. 6205236

1шт.

25

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, motor drain port, swing before P.I.N. 6205236 and after

1шт.

26

S241218

HOSE ASSY.

HOSE - motor drain, 36" (914 mm) long, swing before P.I.N. 6205236 and after

1шт.

27

S229693

TUBE,1" OD x 3, 3.75" L

- at swivel port No. 1, swing motor drain before P.I.N. 6205236 and after

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3 - Swing motor drain before P.I.N. 6205236 and after

1шт.
