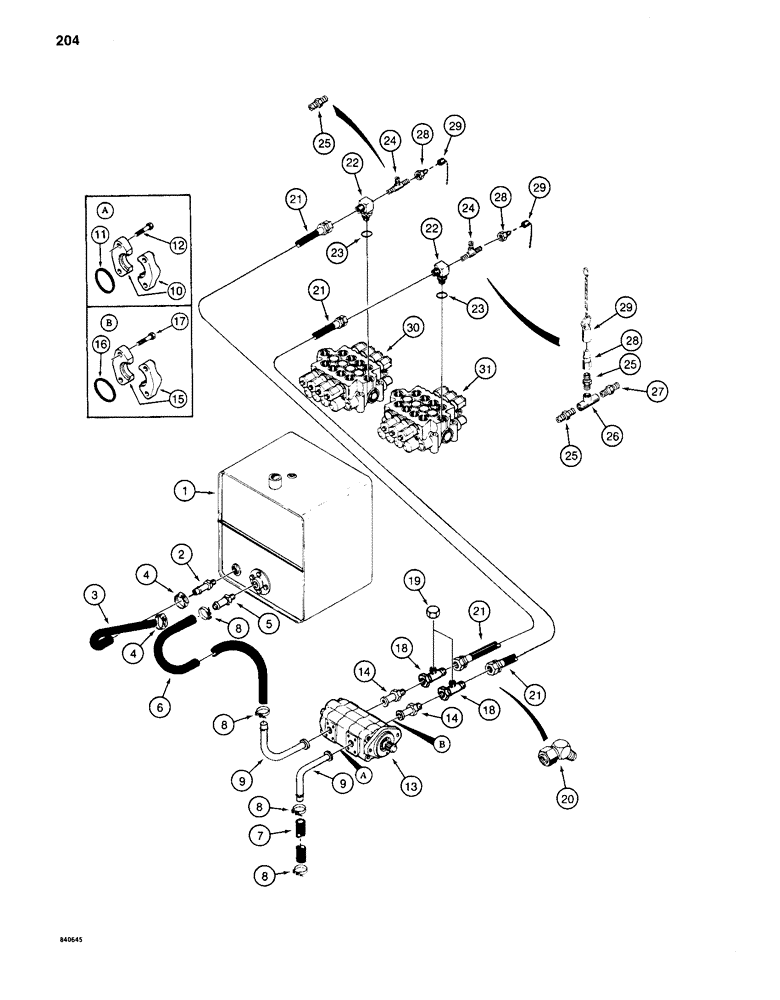

Запчасти Case 880C (204) - HYDRAULIC PUMP LINES (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

RESERVOIR - hydraulic oil, see Figure 200

1шт.

2

217-161

FITTING,1-1/4" Hose Barb x 1" Male NPTF

BARB FITTING - reservoir to filter hose

1шт.

3

REF

INSTRUCTION

HOSE - to hydraulic filter, 37" (940 mm) long, cut from S118465, see below

1шт.

4

214-371

CLAMP,1.56"-1.81", T-Bolt

- hose

2шт.

5

220-8

BARB FITTING - to pump inlet hose

1шт.

6

REF

INSTRUCTION

HOSE - reservoir to pump, 51" (1295 mm) long, cut from S118381, see below

1шт.

7

REF

INSTRUCTION

HOSE - from hydraulic filters, 22" (559 mm) long, cut from S118381, see below

1шт.

8

S85429

CLAMP

- hose

4шт.

9

S236134

TUBE - pump inlet

2шт.

10

A14157

FLANGE

SPLIT FLANGE - tube

4шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- tube

2шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

13

S512441

PUMP

- hydraulic, parts list Figure 260

1шт.

14

S232092

TUBE

- pump outlet

2шт.

15

A12306

FLANGE

SPLIT FLANGE - tube

4шт.

16

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube

2шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

18

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- pump outlet tubes

2шт.

19

218-758

CAP,37 Degree, 1 5/16"-12

- tee

2шт.

20

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, if used

1шт.

21

S8628

HOSE

- pump to control valves, 36" (914 mm) long

2шт.

22

S113093

ELBOW

- 90 degree, at control valves, Includes: Ref. 23

2шт.

23

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

0-RING - elbow

1шт.

24

217-1273

TEE,Male, 1/4"-18

- brake lines, used on PIN 6205236 and after

2шт.

25

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, , Straight, Used before PIN 6205236 1/4"-18 NPTF

3шт.

26

217-1161

TEE,1/4"-18 Female

- brake line, used before PIN 6205236

1шт.

27

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, tee to brake hose, used before PIN 6205236

1шт.

28

S206607

DISC

COUPLING - quick disconnect

2шт.

29

S206608

CAP

- dust

2шт.

30

REF

INSTRUCTION

CONTROL VALVE - outside, see Figures 266-272

1шт.

31

REF

INSTRUCTION

CONTROL VALVE - inside, see Figures 262-264

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Bulk roll 1.25" ID x 180.00", SAE 100R3

1шт.

S118381

HOSE,1.50" ID x 84.00", SAE 100R4

1.50" ID x 84.00" Bulk, SAE 100R4

1шт.
