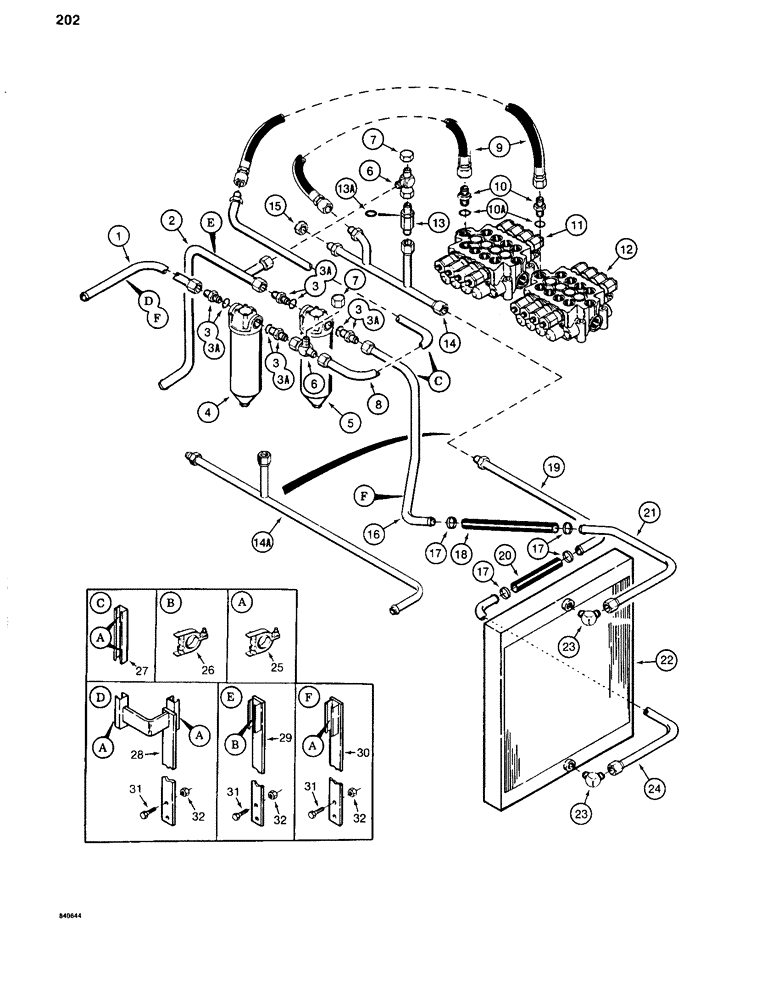

Запчасти Case 880C (202) - HYDRAULIC OIL FILTER AND COOLER LINES (07) - HYDRAULIC SYSTEM

1

S239320

TUBE - rear filter to hydraulic reservoir 1.25" OD

1шт.

2

S514518

TUBE

- front filter to hydraulic pump

1шт.

3

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, filter ports, Includes: Ref. 3A

4шт.

3a

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

0-RING - adapter

1шт.

4

S209408

FILTER

- rear, before PIN 6205236, parts list Figure 258

1шт.

4

S227285

FILTER ASSY

FILTER - rear, PIN 6205236 and after, parts list Figure 254

1шт.

5

S227285

FILTER ASSY

FILTER - front, before PIN 6205236, parts list Figure 254

1шт.

5

S613014

FILTER

- front, PIN 6205236 and after, parts list Figure 256

1шт.

6

218-5224

TEE,37º, 1 5/8"-12 x 1 5/8"-12, Fem Sw Run

- filter and cooler lines

2шт.

7

218-759

CAP,37 Degree, 1 5/8"-12

- tee

2шт.

8

S514546

TUBE - to rear filter 1.25" OD

1шт.

9

S8628

HOSE

- from control valves, 36" (914 mm) long

2шт.

10

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - at control valve ports, Incl. Ref. 10A

2шт.

10a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

11

REF

INSTRUCTION

CONTROL VALVE - outside, see Figures 266-272

1шт.

12

REF

INSTRUCTION

CONTROL VALVE - inside, see Figures 262-264

1шт.

13

S105386

VALVE

CHECK VALVE - filter and cooler tube, Includes: Ref. 13A

1шт.

13a

A13084

O-RING,12.37" ID x 1.443" OD x 0.103"

- vlave body to valve fitting

1шт.

14

S238908

TUBE - four way, used before PIN 6205456, used with Ref. 19

1шт.

14a

S240550

TUBE - three way, used on PIN 6205456 and after, used in place of Ref. 14 and 19

1шт.

15

218-758

CAP,37 Degree, 1 5/16"-12

- tube, if used

1шт.

16

S514625

TUBE - to front filter 1.25" OD

1шт.

17

214-371

CLAMP,1.56"-1.81", T-Bolt

- hose

4шт.

18

REF

INSTRUCTION

HOSE - upper cooler port, 15" (381 mm) long, cut from S118465, see below

1шт.

19

S208827

TUBE - lower, used before PIN 6205456, used with Ref. 14, see Ref. 14A 1.25" OD x 25, 6" L

1шт.

20

REF

INSTRUCTION

HOSE - lower cooler port, 9" (229 mm) long, cut from S118465, see below

1шт.

21

S238905

TUBE - upper cooler port 1.25" OD

1шт.

22

S601957

COOLER

OIL COOLER - hydraulic oil

1шт.

23

218-1069

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degree, oil cooler ports

2шт.

24

S238904

TUBE,1.25" OD

- hydraulic

1шт.

25

S93266

CLAMP

- tube, 1-1/4"

1шт.

26

S98324

CLAMP

- tube, 1-1/2"

1шт.

27

S98414

CHANNEL

- tube clamp

2шт.

28

S239323

BRACKET - tube clamp, used before PIN 6205456

1шт.

29

S238919

BRACKET

- tube clamp, used before PIN 6205456

1шт.

30

S226000

BRACKET - tube clamp

1-2шт.

31

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

32

131-70

NUT,1/2"-13, GB

NUT - hex, self locking, 1/2" - 13 NC

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Bulk roll 1.25" ID x 180.00", SAE 100R3

1шт.
