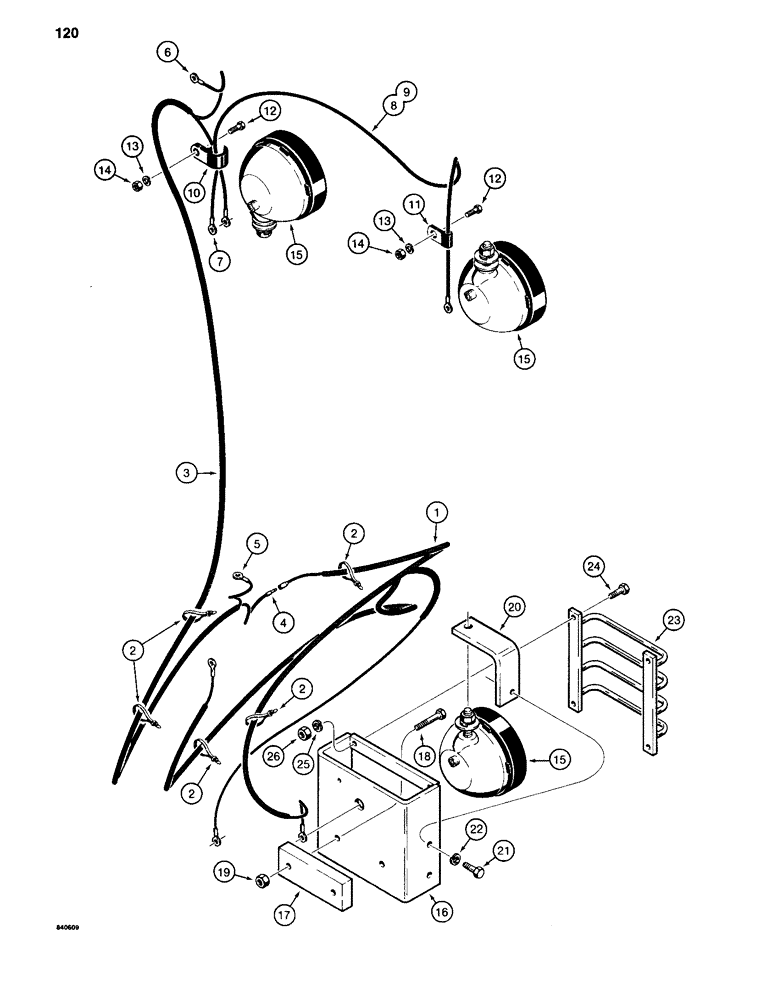

Запчасти Case 880C (120) - ELECTRICAL CIRCUIT FOR WORK LAMPS, PIN 6205236 AND AFTER (06) - ELECTRICAL SYSTEMS

1

S239448

HARNESS

- front work lamps

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

REF

INSTRUCTION

WIRE - to left-hand dipper lamp, 400" (10.16 m) long, cut from S118482, see below

1шт.

4

223-191

TERMINAL CONNECTOR,14 - 16

TERMINAL - wire to harness

1шт.

5

223-61

TERMINAL CONNECTOR,14 - 16

TERMINAL - eye, ground, at turntable

1шт.

6

223-62

TERMINAL - eye, ground, at dipper

1шт.

7

223-59

TERMINAL CONNECTOR

TERMINAL - eye, at dipper lamp

1шт.

8

S237762

ELECTRICAL WIRE

WIRE - between dipper lamps

1шт.

9

REF

INSTRUCTION

LOOM - wire, 36" (914 mm) long, cut from S118377, see below

1шт.

10

49885

CLAMP

- wires at left-hand lamp

1шт.

11

S15543

CLAMP,7/16", Insul, 1/2" Bolt

- wire at right-hand lamp

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

D51222

LIGHT ASSY.

LAMP - work, parts list Figure 122

4шт.

16

S212579

GUARD

HOUSING - work lamp

4шт.

17

S86493

SPACER

- housing, used on turntable lamp mounting only

2шт.

18

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

4шт.

19

131-492

NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

20

S222287

BRACKET

- work lamp

4шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

S212578

PROTECTOR

GUARD - work lamp

4шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

16шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

16шт.

S118482

CABLE

WIRE - double, 600" (15.24 m) long

1шт.

S118377

LOOM

- wire, 240" (6.10 m) long

1шт.
