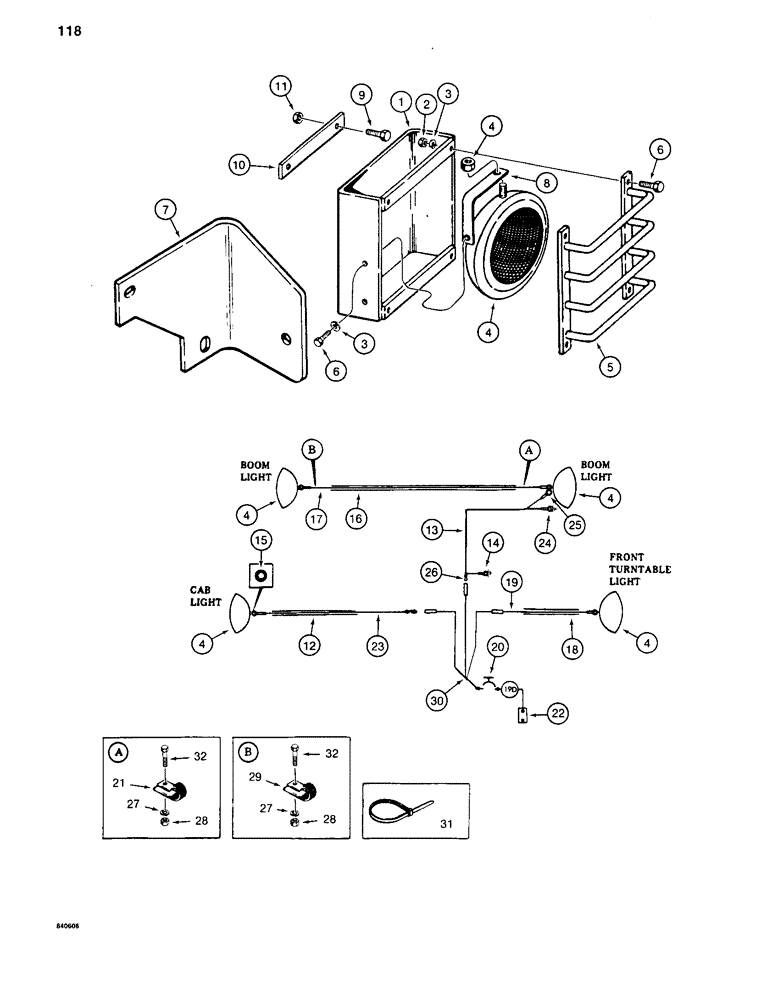

Запчасти Case 880C (118) - ELECTRICAL CIRCUIT FOR WORK LAMPS, BEFORE PIN 6205236 (06) - ELECTRICAL SYSTEMS

1

S212579

GUARD

HOUSING - work lamp

4шт.

2

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

16шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

4

D51222

LIGHT ASSY.

LAMP - work, parts list Figure 122

4шт.

5

S212578

PROTECTOR

GUARD - work lamp

4шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

20шт.

7

S513939

GUARD

- mounts on top of cab

1шт.

8

S222287

BRACKET

- work lamp

4шт.

9

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

2шт.

10

S86493

SPACER

- housing, used on turntable lamp mounting only

1шт.

11

131-492

NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

12

REF

INSTRUCTION

LOOM - wire, 21" (533 mm) long, cut from S118377, see below

1шт.

13

REF

INSTRUCTION

WIRE - to left-hand dipper lamp, 400" (10.16 m) long, cut from S118377, see below

1шт.

14

223-61

TERMINAL CONNECTOR,14 - 16

TERMINAL - eye, ground at turntable

1шт.

15

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- in cab

1шт.

16

REF

INSTRUCTION

LOOM - wire, 36" (914 mm) long, cut from S118377, see below

1шт.

17

S237762

ELECTRICAL WIRE

WIRE - between dipper lamps

1шт.

18

REF

INSTRUCTION

LOOM - wire, 8" (203 mm) cut from S118377, see below

1шт.

19

S234167

WIRE - to turntable lamp

1шт.

20

S88636

IGNITION SWITCH

SWITCH - work lamp

1шт.

21

NLS

NO LONGER SERVICED

- wires at left-hand lamp

1шт.

22

S115714

BREAKER

CIRCUIT BREAKER - work lamps

1шт.

The small 19D shown in Ref. 22 is a wiring code.

1шт.

23

S237761

WIRE - to cab lamp

1шт.

24

223-62

TERMINAL - ground, at dipper

1шт.

25

223-59

TERMINAL CONNECTOR

TERMINAL - eye, at dipper lamp

1шт.

26

223-191

TERMINAL CONNECTOR,14 - 16

TERMINAL - wire to harness

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

29

S15543

CLAMP,7/16", Insul, 1/2" Bolt

- wire at right-hand lamp

1шт.

30

S237763

HARNESS - front work lamps

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

32

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

S118377

LOOM

- wire, 240" (6.10 m) long

1шт.

S118482

CABLE

WIRE - double, 600" (15.24 m) long

1шт.
