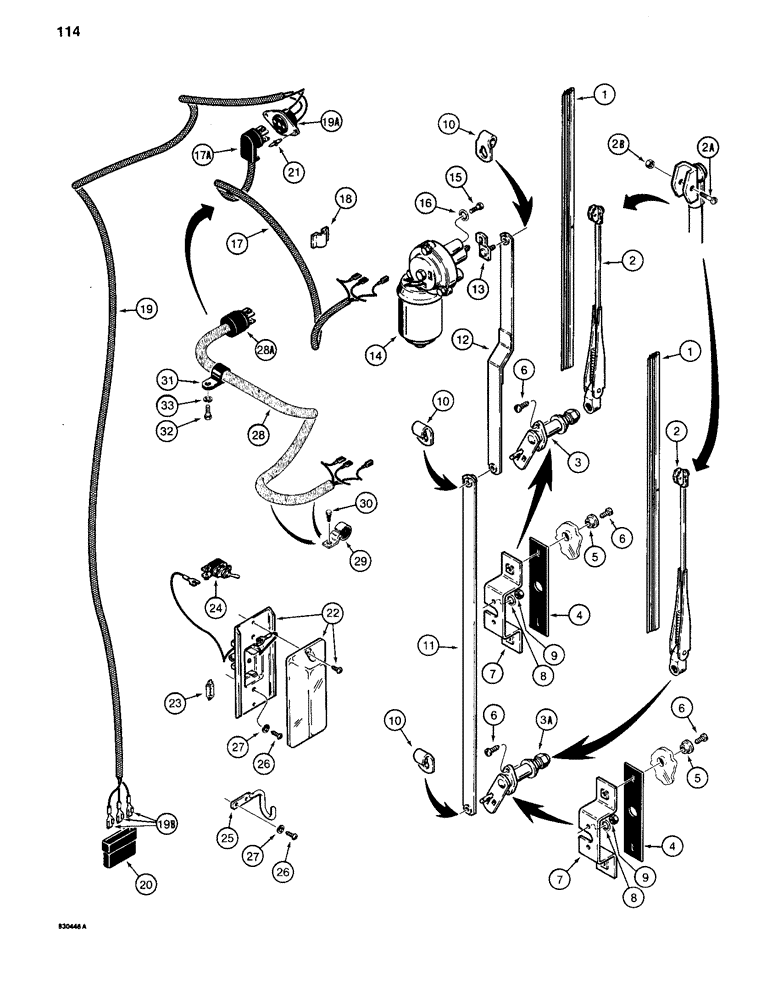

Запчасти Case 880C (114) - WINDSHIELD WIPER AND DOME LAMP, PIN 6205559 AND AFTER (06) - ELECTRICAL SYSTEMS

1

A165059

WIPER

BLADE - wiper arm

2шт.

2

S241559

WIPER ARM

ARM - windshield wiper, Includes: Ref. 2A and 2B

2шт.

2a

169-44

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

MACHINE SCREW - Fillister Head, No. 5 - 40 NC x 1/2"

1шт.

2b

131-502

LOCK NUT,#5-40

NUT - hex, self-locking, No. 5 - 40 NC

1шт.

3

S516458

SHAFT

ASSEMBLY - pivot, upper

1шт.

3a

S516457

SHAFT

ASSEMBLY - pivot, lower

1шт.

4

S218046

GASKET

- rubber, Serial Range: bracket-glass

2шт.

5

S90068

BUSHING

- rubber, bracket mounting

4шт.

6

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

MACHINE SCREW - No. 10 - 24 NC x 5/8", plated

8шт.

7

S241525

BRACKET

- mounting, wiper shaft

2шт.

8

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.

9

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

10

S240639

CLIP

-, Serial Range: arm-shaft

3шт.

11

S241524

LINK

- connecting, upper to lower shaft

1шт.

12

S241523

LINK

- connecting, upper, Serial Range: shaft-motor

1шт.

13

A36091

ARM

- drive, Serial Range: motor-link

1шт.

14

S118443

WIPER

MOTOR - wiper, 24 volt

1шт.

15

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex head, 1/4" - 28 NF x 3/4"

3шт.

16

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4"

3шт.

17

N60273

HARNESS

- wiring, wiper, 24" (610 mm) long, if used, see Ref. 28, Includes: Ref. 17A

1шт.

17a

S117619

PLUG

- male

1шт.

18

F67097

CLIP - wiper harness, used with Ref. 17 only

1шт.

19

S239623

HARNESS

- cab wiring, Includes: Ref. 19A and 19B

1шт.

19a

S117120

DRAG LINK

SOCKET - female

1шт.

19b

223-178

TERMINAL CONNECTOR

TERMINAL - wire ends

3шт.

20

223-172

CONNECTOR, ELEC

RECEPTACLE - wiring harness

1шт.

21

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

POP RIVET - 1/8" x 1/4"

2шт.

22

S239624

LIGHT ASSY.

LAMP ASSEMBLY - dome, Includes: Ref. 23

1шт.

23

F64364

BULB,12V

- dome lamp, No. 561

1шт.

24

S117668

SWITCH

- toggle, dome lamp

1шт.

25

S61769

HOOK

- coat

1шт.

26

182-51

SCREW,Slotted Pan Hd, #6-32 x 1 1/8"

- round head, No. 10 - 24 NC x 3/8"

4шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

28

S242085

HARNESS

- wiring, wiper, 78" (1981 mm) long, clamps to cab roof, if used, see Ref. 17, Includes: Ref. 28A

1шт.

28a

S120373

PLUG

- male

1шт.

29

214-1202

CLAMP

- front

2шт.

30

187-1507

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - hex head, self-tapping, No. 10 - 24 NC x 3/8"

2шт.

31

S64985

CLAMP

- rear

1шт.

32

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
