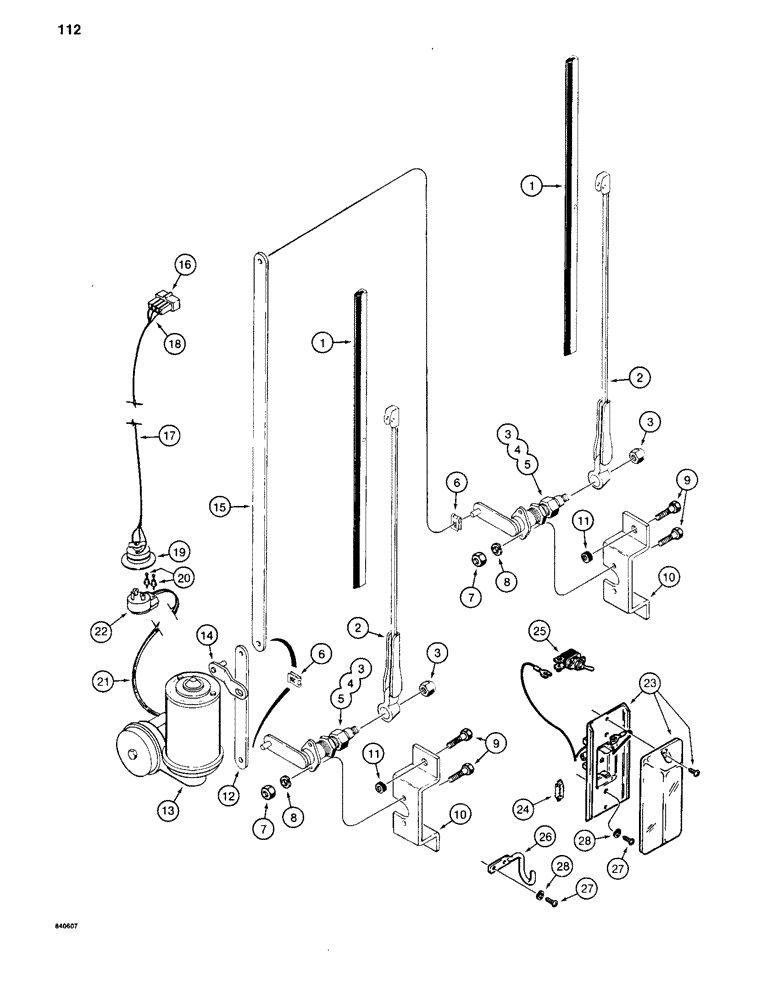

Запчасти Case 880C (112) - WINDSHIELD WIPER AND DOME LAMP, PIN 6205236 THRU 6205558 (06) - ELECTRICAL SYSTEMS

1

S90047

HALF BLADE

BLADE - wiper arm

2шт.

2

A43202

ARM

- windshield wiper

2шт.

3

S515090

SHAFT

ASSEMBLY - pivot, includes nuts

2шт.

4

S218046

GASKET

- used on ref 3, not shown

2шт.

5

S240130

CLIP

RETAINER - used on ref 3, not shown

2шт.

6

S240639

CLIP

- spring, shaft and, Serial Range: arm-links

3шт.

7

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

8

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.

9

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

MACHINE SCREW - No. 10 - 24 NC x 5/8", plated

8шт.

10

S239792

BRACKET - mounting, wiper shaft

2шт.

11

S90068

BUSHING

- rubber, bracket mounting

4шт.

12

S117642

LINK - connecting, short

1шт.

13

S118443

WIPER

MOTOR - wiper, 24 volt

1шт.

14

S117262

ARM - drive, Serial Range: motor-link

1шт.

15

S239734

LINK - connecting, long

1шт.

16

223-172

CONNECTOR, ELEC

RECEPTABLE - wiring harness

1шт.

17

S239623

HARNESS

ASSEMBLY - cab wiring, Includes: Ref. 18 and 19

1шт.

18

223-178

TERMINAL CONNECTOR

TERMINAL - wire ends

3шт.

19

S117120

DRAG LINK

SOCKET - female

1шт.

20

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

POP RIVET - 1/8" x 1/4"

2шт.

21

S239798

HARNESS ASSEMBLY - wiring, wiper, Includes: Ref. 22

1шт.

22

S117619

PLUG

- male

1шт.

23

S239624

LIGHT ASSY.

LAMP ASSEMBLY - dome, Includes: Ref. 24

1шт.

24

F64364

BULB,12V

- dome lamp, No. 561

1шт.

25

S117668

SWITCH

- toggle, dome lamp

1шт.

26

S61769

HOOK

- coat

1шт.

27

182-51

SCREW,Slotted Pan Hd, #6-32 x 1 1/8"

- round head, No. 10 - 24 NC x 3/8"

4шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.
