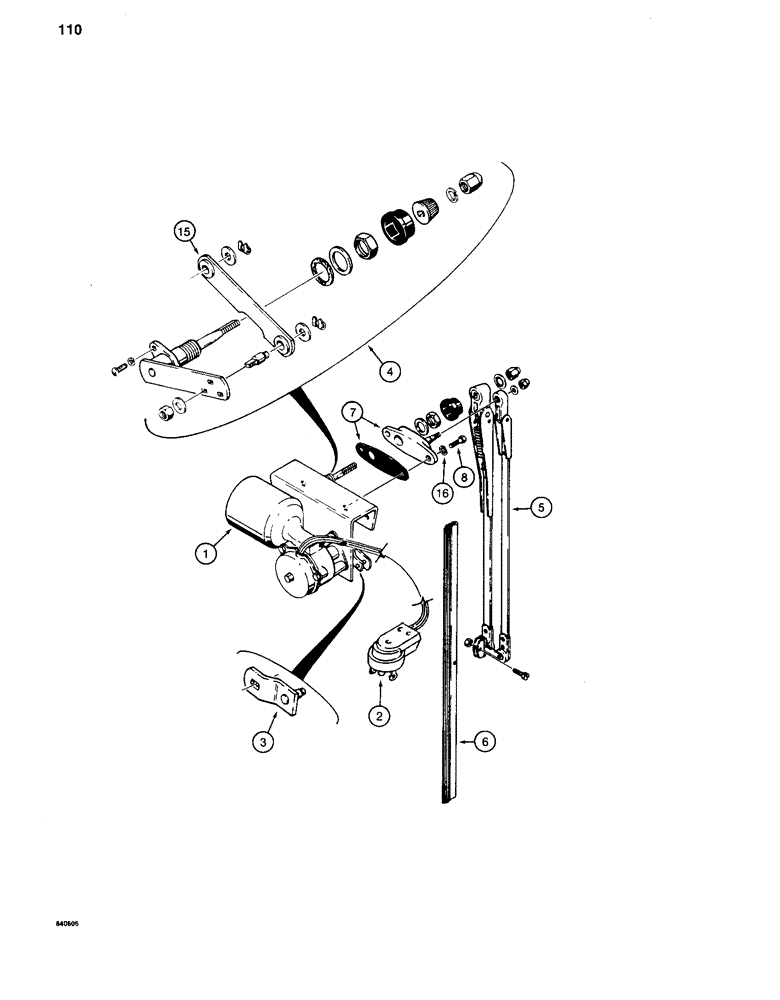

Запчасти Case 880C (110) - WINDSHIELD WIPER AND DOME LAMP, BEFORE PIN 6205236 (06) - ELECTRICAL SYSTEMS

S615415

WIPER

KIT - wiper and dome lamp, Includes: Ref. 1 - 14

1шт.

1

S239047

MOTOR, ELECTRIC

MOTOR - wiper, 24 volt, Includes: Ref. 2

1шт.

2

S117619

PLUG

- motor

1шт.

3

A36091

ARM

- drive

1шт.

4

D72848

SHAFT

ASSEMBLY - pivot

1шт.

5

L35260

ARM

- wiper

1шт.

6

F43938

WIPER BLADE

BLADE - wiper arm

1шт.

7

S61798

KIT

PLATE - adapter

1шт.

8

S61799

SCREW

MACHINE SCREW - 1/4" - 20 NC x 5/8"

2шт.

9

S61880

LIGHT ASSY.

LAMP ASSEMBLY - dome, not shown, Includes: Ref. 10 - 14

1шт.

10

223-93

TERMINAL CONNECTOR,Female, 14 - 16

TERMINAL - dome lamp, not shown

1шт.

11

S117176

LAMP ASSEMBLY - lens and housing, not shown

1шт.

12

S97035

BULB

- lamp, No. 1309, not shown

1шт.

13

NSS

NOT SOLD SEPARAT

SWITCH - dome lamp, not shown

1шт.

14

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

MACHINE SCREW - No. 6 - 32 NC x 1/2", not shown

4шт.

15

D71427

LINK,85.85mm L

- windshield wiper

1шт.

16

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.
