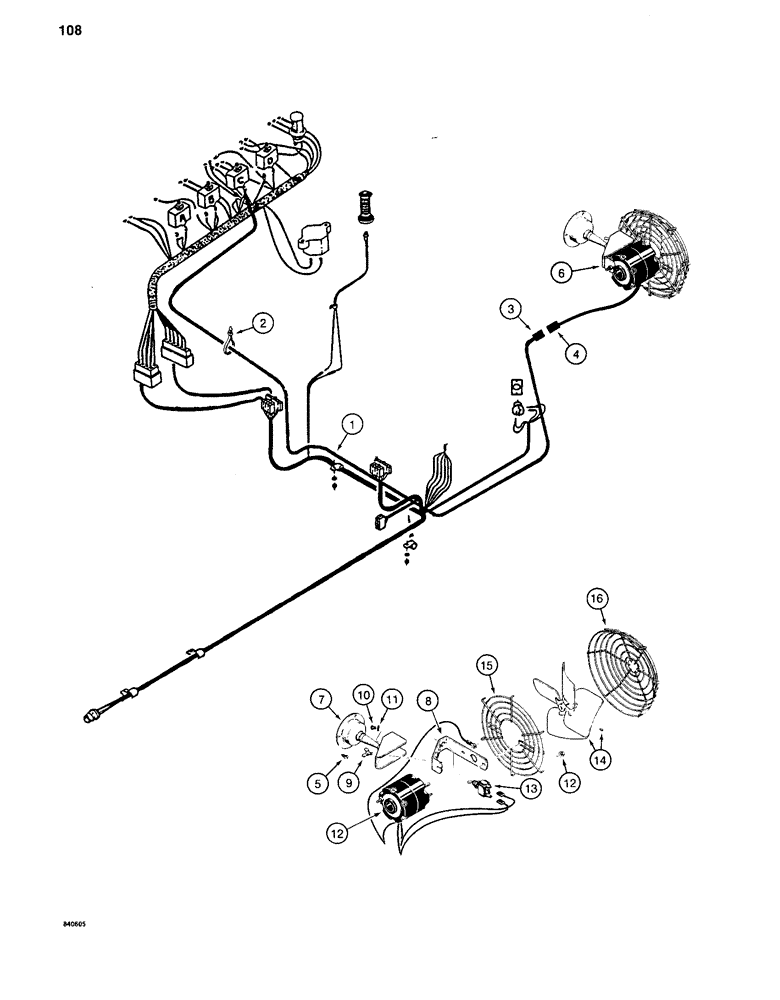

Запчасти Case 880C (108) - DEFROSTER FAN (06) - ELECTRICAL SYSTEMS

1

S228412

WIRE - circuit, Serial Range: breaker-fan

1шт.

2

R38237

STRAP

TIE STRAP - wire

1шт.

3

S117295

ROD, CONNECTING

CONNECTOR - S228412 wire, female

1шт.

4

S117294

ROD, CONNECTING

CONNECTOR - fan wire, male, if used

1шт.

5

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self-tapping, No. 10 - 24 NC x 3/8"

3шт.

6

S222133

FAN

ASSEMBLY - defroster, Includes: Ref. 7 - 16

1шт.

7

S63447

BRACKET

BASE - defroster fan

1шт.

8

S111275

BRACKET

-, Serial Range: motor-base

1шт.

9

N9045

SCREW,#12 - 24 x 3/8"

- wing, No. 12 - 24 NC

1шт.

10

182-164

SCREW,Sl Pan Hd, #12 - 24 x 1/2"

- machine, No. 12 - 24 NC x 1/2"

1шт.

11

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

1шт.

12

S111274

MOTOR

- defroster fan, 24 volt

1шт.

13

S111270

SWITCH

- fan motor

1шт.

14

S111271

FAN

BLADE - fan

1шт.

15

S111273

GUARD

- fan blade, rear

1шт.

16

S111272

GUARD

- fan blade, front

1шт.
