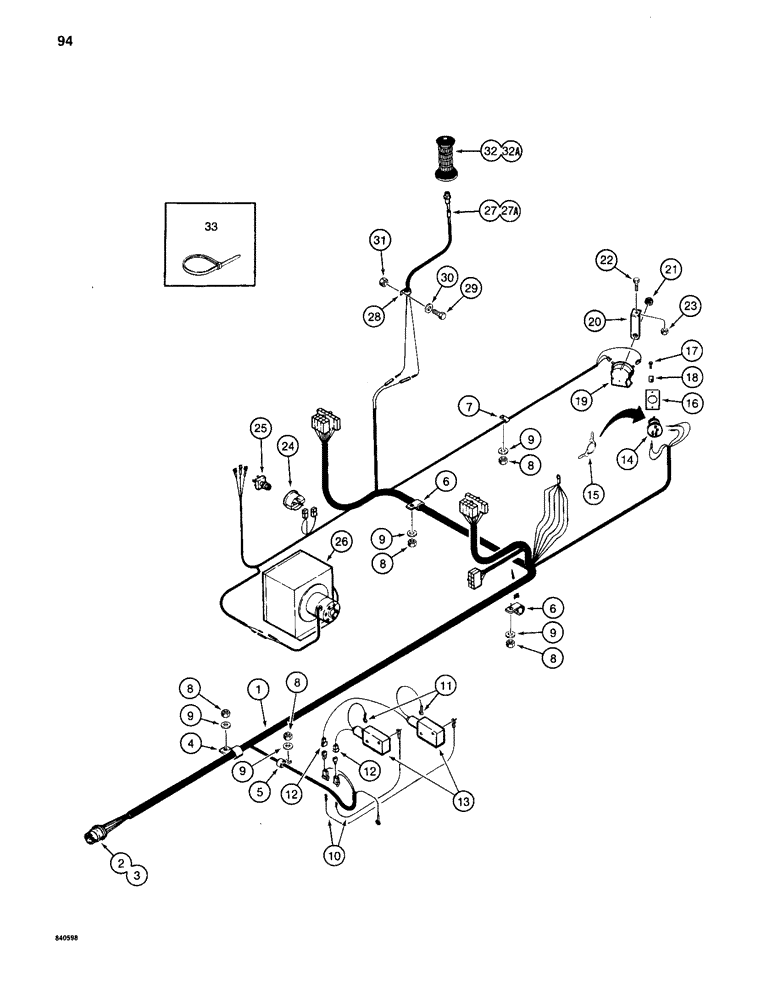

Запчасти Case 880C (094) - ELECTRICAL HARNESS - CAB AND TURNTABLE, PIN 6205236 AND AFTER (06) - ELECTRICAL SYSTEMS

1

S618338

HARNESS

- turntable, Includes: Ref. 2 and 3

1шт.

2

S107264

CONNECTION,ELECTRIC

PLUG - electrical, harness, Includes: Ref. 3

1шт.

3

S99516

CONTACT

PIN - plug, not shown

8шт.

4

R14668

CLAMP

- harness, rear

1шт.

5

S64985

CLAMP

- wire

1шт.

6

T50103

CLAMP

- harness, front

2шт.

7

A61275

CLIP

CLAMP - horn wire

1шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

5шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8"

5шт.

10

S238309

DIODE

WIRE ASSEMBLY - diode

1-2шт.

11

223-52

FUSE

TERMINAL - wires

1-2шт.

12

S117294

ROD, CONNECTING

CONNECTOR - solenoid control valve wires

1-2шт.

13

S237789

VALVE

SOLENOID CONTROL VALVE - parts list Figure 294

1-2шт.

S108413

SWITCH

KEY SWITCH ASSEMBLY - electrical system, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

KEY SWITCH - electrical system

1шт.

15

R30074

SET

KEYS - switch, set of two keys

1шт.

16

S239946

PLATE

- switch mounting

1шт.

17

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - No. 10 - 24 NC x 3/4"

2шт.

18

S117167

CLIP

NUT - U-type, No. 10 - 24 NC

2шт.

19

D77650

HORN

- electrical

1шт.

20

S203190

BRACKET

- horn mounting

1шт.

21

L30866

LOCK NUT

- horn mounting

1шт.

22

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

23

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

24

S515551

HOURMETER

- electric

1шт.

25

REF

INSTRUCTION

SWITCH - heater, if used, supplied with heater, see Figure 106 for heater parts list

1шт.

26

S240031

HEATER

- cab, if used, parts list Figure 106

1шт.

27

S238765

SWITCH

AND WIRE - fast hoist, has plastic button, used with S109220 grip, Ref. 32

1шт.

27a

S242036

SWITCH

AND WIRE - fast hoist, has rubber covered button, used with S119987 grip, Ref. 32A

1шт.

28

49851

SHIELD

- fast hoist switch wire

1шт.

29

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

30

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

31

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

32

S109220

GRIP

- control lever, see Figure 332 for hand lever control, used with Ref. 27

1шт.

32a

S119987

GRIP

- control lever, see Figure 332 for hand lever control, used with Ref. 27A

1шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
