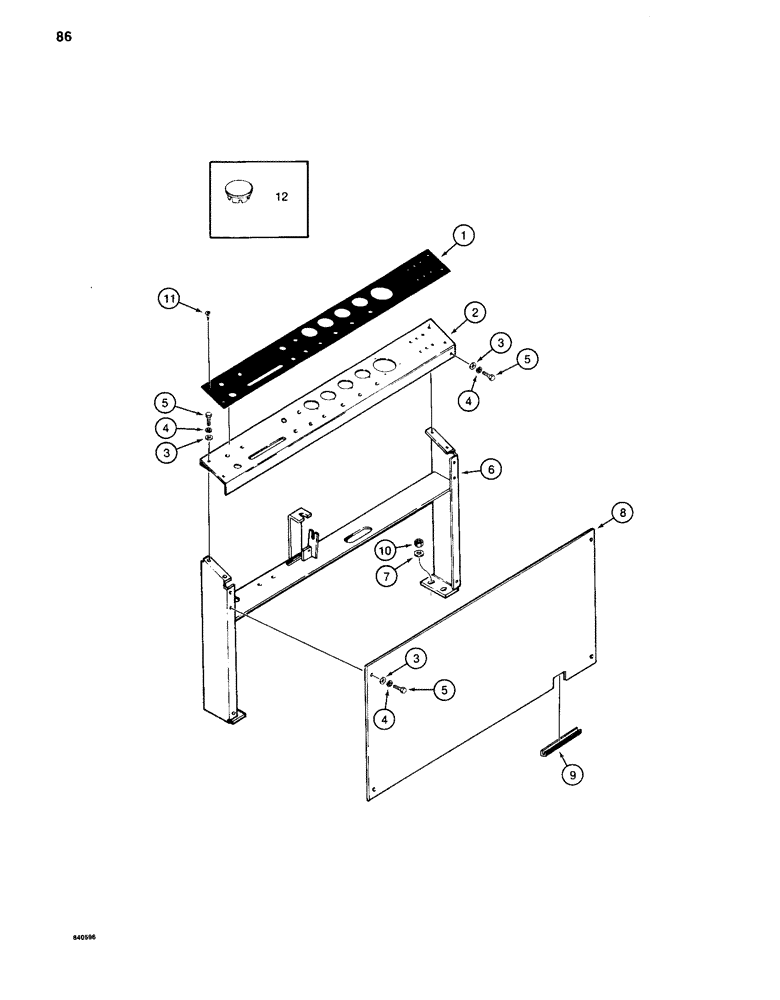

Запчасти Case 880C (086) - INSTRUMENT PANEL, BEFORE PIN 6205236 (06) - ELECTRICAL SYSTEMS

1

321-5966

DECAL - instrument panel

1шт.

2

S614998

PANEL, INSTRUMENTS

PANEL - instrument

1шт.

3

195-101

WASHER,3/16"

- flat, 1/4"

1шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

5

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

6

S612800

SUPPORT - instrument panel

1шт.

7

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

8

S513091

COVER - side

1шт.

9

REF

INSTRUCTION

MOULDING - rubber, 11" (279 mm) long, cut from S118467, see below

1шт.

10

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

11

187-1812

SCREW - self-tapping, No. 6 - 32 NC

10шт.

12

353-404

PLUG,Dome, .500" hole, Nylon

Used to plug hole in instrument panel when work lights or cold start is not used Dome, .500" hole, Nylon

1-2шт.

S118467

SEAL

MOULDING - rubber, bulk, 120" (3048 mm) long

1шт.
