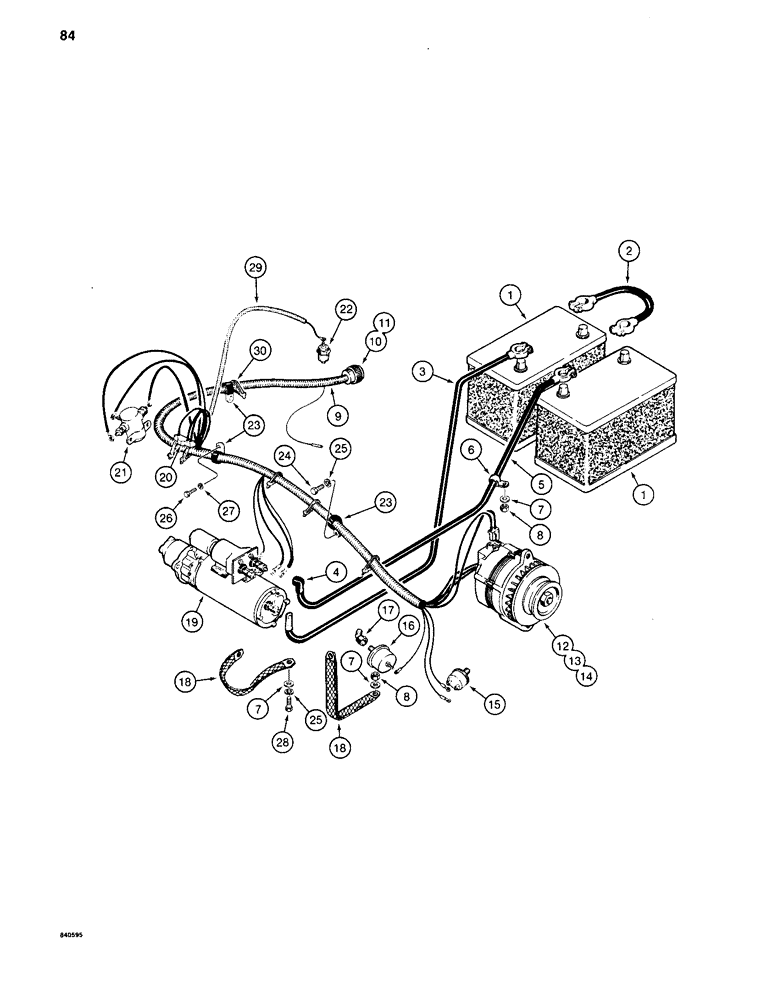

Запчасти Case 880C (084) - ENGINE ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

A145205

WET BATTERY

- 12 volt, see figure 82 for battery retainer

2шт.

2

S237885

NEG BATTERY CABLE

CABLE -, Serial Range: battery-battery

1шт.

3

S223593

CABLE PULLING GRIP

CABLE - battery, to starter G terminal

1шт.

4

S115407

BOOT

- rubber

1шт.

5

S236999

CABLE PULLING GRIP

CABLE - battery, to starter B terminal

1шт.

6

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- cables to frame

2шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8"

2-3шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

9

S614353

HARNESS

- engine electrical, Includes: Ref. 10 and 11

1шт.

10

S107265

PLUG

CONNECTOR - harness, Includes: Ref. 11

1шт.

11

S99513

CONTACT

- connector, female, not shown

8шт.

12

REF

INSTRUCTION

ALTERNATOR - electrical, parts list figures 68 and 70, mounting brackets figure 82

1шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Alternator output terminal, not shown 1/4"

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Alternator output terminal, not shown

1шт.

15

S63884

SWITCH

- hourmeter, oil pressure activated

1шт.

16

S108398

TRANSMITTER

SENDER - engine oil pressure

1шт.

17

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

18

S229640

CABLE

- ground, starter to engine and, Serial Range: engine-turntable

2шт.

19

REF

INSTRUCTION

STARTER - engine, see figures 72-80 for the correct assembly, mounting hardware and components

1шт.

20

S237284

RESISTOR

- alternator circuit

1шт.

21

S240588

SOLENOID SWITCH

RELAY - starter, see figure 82 for mounting plate and hardware

1шт.

22

S108396

SENDER UNIT

SENDER - engine temperature

1шт.

23

R14668

CLAMP

- harness

3шт.

24

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

29

REF

INSTRUCTION

LOOM - engine temperature sending wire, 21" (533 mm) long, cut from S118377, see below

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S118377

LOOM

- bulk roll, 240" (6069 mm) long

1шт.
