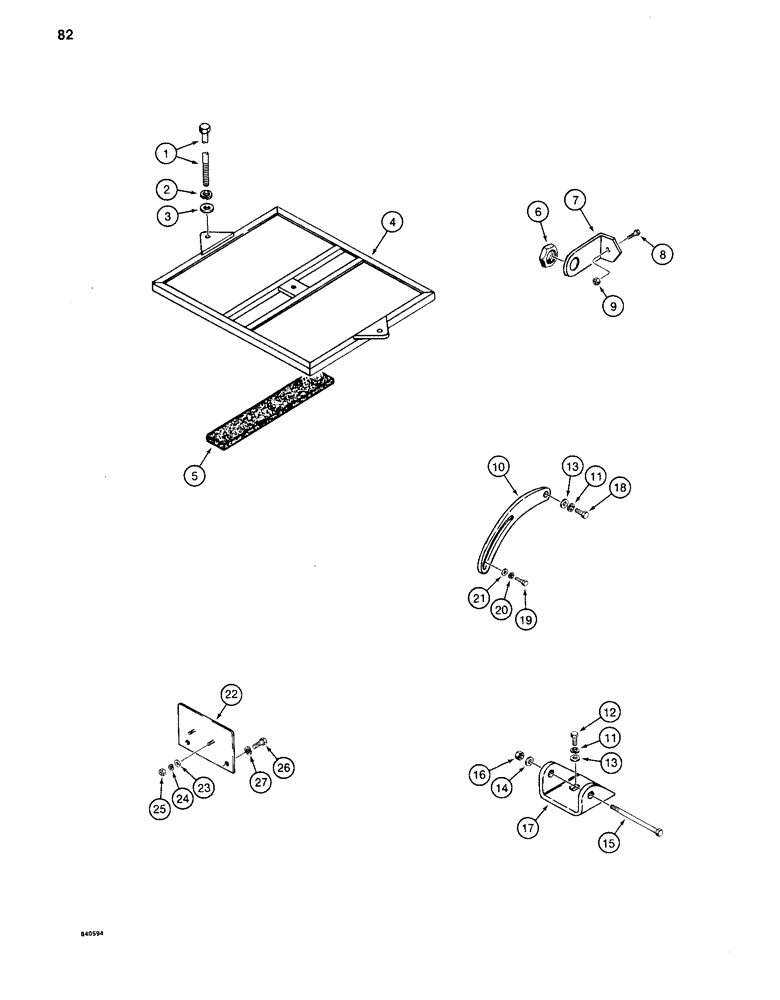

Запчасти Case 880C (082) - BATTERY, ALTERNATOR, AND HORN BRACKETS (06) - ELECTRICAL SYSTEMS

1

113-2446

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

3шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

3

S95569

WASHER

- flat, 1/2", hardened

3шт.

4

S515069

BRACKET

RETAINER - battery

1шт.

5

S117291

STRIP

- rubber

4шт.

6

L30866

LOCK NUT

- horn mounting, special

1шт.

7

S203190

BRACKET

- horn mounting

1шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

9

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

10

S238535

BRACKET

STRAP - alternator adjusting

1шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

195-525

WASHER,3/8", SAE

- flat, 3/8"

3шт.

14

195-103

WASHER,5/16"

- flat, 3/8", used as spacers, if used

1шт.

15

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

16

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

17

A160391

BRACKET

- alternator mounting

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

21

195-521

WASHER,5/16", SAE

- flat, 11/32"

1шт.

22

S238088

BRACKET

PLATE - relay mounting, rectangular shape, replaces triangle shaped bracket

1шт.

23

195-525

WASHER,3/8", SAE

- flat, 3/8", used as spacer between relay and plate

2шт.

24

195-516

WASHER,#12

- flat, 1/4"

2шт.

25

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
