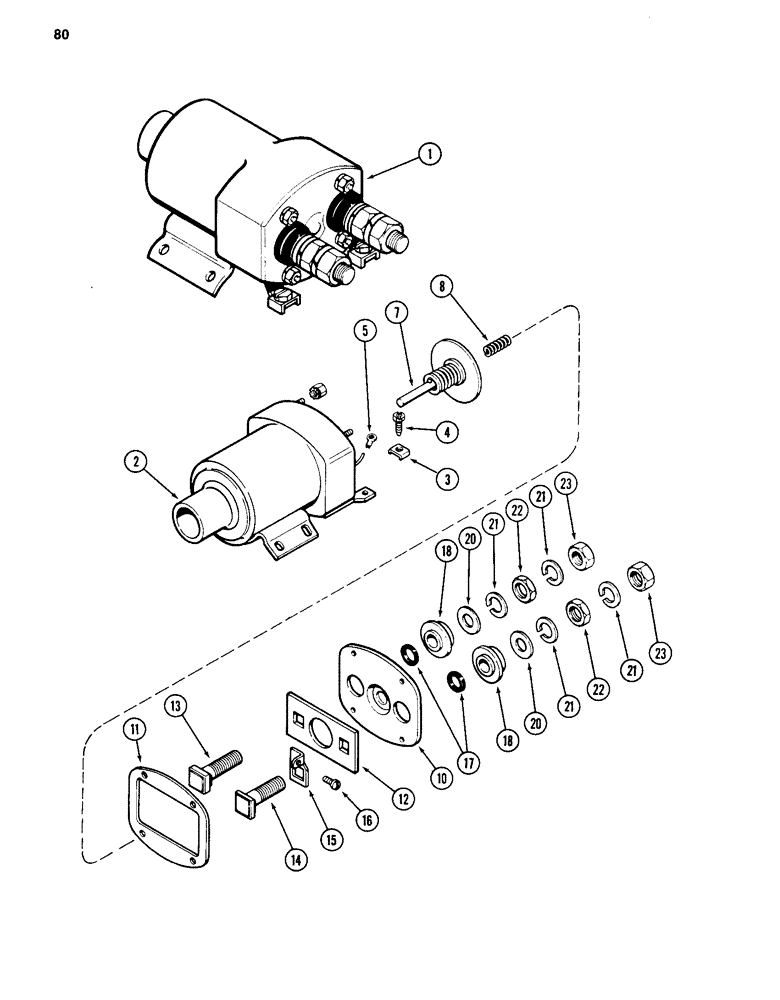

Запчасти Case 880C (080) - A42376 SOLENOID, 504BD DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

1

A42376

SWITCH

SOLENOID ASSEMBLY - starter motor (Delco No. 1119848), Includes: Ref. 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY

1шт.

3

A42407

CLAMP

- terminal

1шт.

4

D32502

SCREW,Hex, #10 - 32 x 3/8"

- clamp

1шт.

5

A42408

ELECTRICAL WIRE

WIRE - ground

1шт.

7

D32498

CONTACT

ASSEMBLY

1шт.

8

A42411

VALVE SPRING

SPRING - return

1шт.

A42412

PLATE

ASSEMBLY - terminal, Includes: Ref. 10 - 23

1шт.

10

A42410

PLATE

- terminal

1шт.

11

A32507

RATCHET

INSULATOR - terminal plate

1шт.

12

A42260

GASKET

- terminal plate

1шт.

13

A42413

STUD

TERMINAL - battery, 1/2 NC thread 21/32 inch long

1шт.

14

D32506

STUD

TERMINAL - starter, 1/2 NC thread 1-3/16 inch long

1шт.

15

D29910

SUPPORT

- coil lead

1шт.

16

175-56

SCREW - truss head, No. 6-32 x 3/16 inch Slotted Truss Hd, #6-32 x 3/16"

1шт.

17

D32510

BUSHING

- terminal insulator

2шт.

18

A43701

BUSHING

INSULATOR

2шт.

20

D30006

WASHER

- steel

2шт.

21

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2 inch

4шт.

22

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
