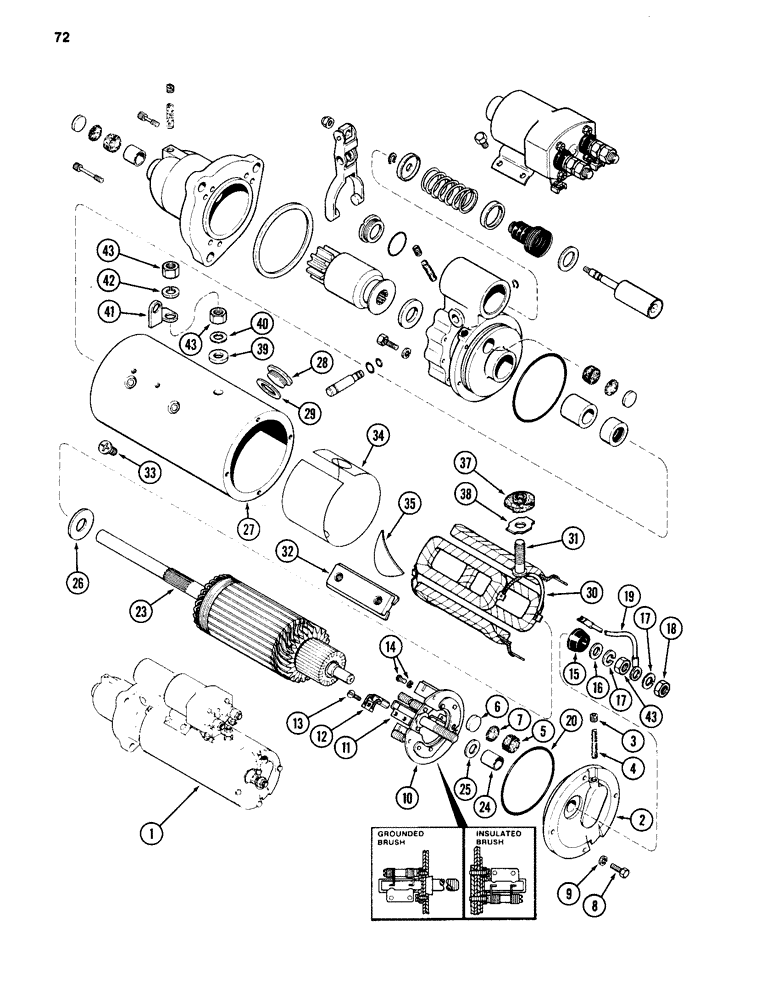

Запчасти Case 880C (072) - R43343 STARTER, 504BD DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

1

R43343

STARTER MOTOR

STARTER ASSEMBLY - (Delco-Remy 1114774), Includes: Ref. 2 - 43

1шт.

1

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104213A1C

CORE-STARTER

Return Number

1шт.

1

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

1

RC46156

CORE-STARTER

Return Number

1шт.

2

A47887

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref. 3 - 7

1шт.

3

221-1041

PLUG

PLUG - oil wick hole

1шт.

4

R15023

WICK

WICK - oil

1шт.

5

A41923

PLUG

PLUG - felt, oil reservoir

1шт.

6

41-57

PLUG,Exp, 1 1/32"

PLUG - oil reservoir

1шт.

7

A41973

GASKET

GASKET - plug

1шт.

8

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

A42373

PLATE

PLATE ASSEMBLY - brush holder, Includes: Ref. 11

1шт.

11

A25393

SPRING

SPRING - brush tension

8шт.

12

A41456

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

8шт.

13

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SCREW - round head, No. 8-32 x 5/16 inch

8шт.

14

A43847

SCREW,3/8" - 32 x 1/2"

SCREW - plate mounting (includes lock washer)

3шт.

15

A43701

BUSHING

BUSHING - insulating, terminal

1шт.

16

D30006

WASHER

WASHER - stud

1шт.

17

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2 inch

2шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

19

A41978

ELECTRICAL WIRE

WIRE WIRE -, Serial Range: terminal-solenoid

1шт.

20

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - end frame

1шт.

23

A41458

ARMATURE

ARMATURE - starter motor

1шт.

24

A42323

BUSHING

BUSHING - armature shaft

1шт.

25

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - thrust, commutator end

1шт.

26

A40892

WASHER

WASHER - thrust, center

1шт.

27

NSS

NOT SOLD SEPARAT

FRAME - starter housing

1шт.

28

R21587

PLUG

PLUG - inspection

2шт.

29

A41924

GASKET

GASKET - plug

2шт.

30

A41950

COIL ASSY.

COIL ASSEMBLY - field, Includes: Ref. 31

1шт.

31

A40896

STUD

STUD - terminal

1шт.

32

R15115

SHOE

SHOE - pole

4шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - Phillips, 3/8 NC x 5/8 inch

8шт.

34

A44169

INSULATOR

INSULATION - coil terminal

1шт.

35

A41977

RUBBER INSULATOR

INSULATION - coil end

1шт.

A41925

BUSHING

BUSHING ASSEMBLY - field coil terminal, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

INSULATOR - field coil

1шт.

38

NSS

NOT SOLD SEPARAT

SUPPORT - insulator

1шт.

39

D30005

INSULATOR

INSULATOR - outer, field terminal

1шт.

40

D30006

WASHER

WASHER - terminal

1шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

42

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2 inch

1шт.

43

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

2шт.
