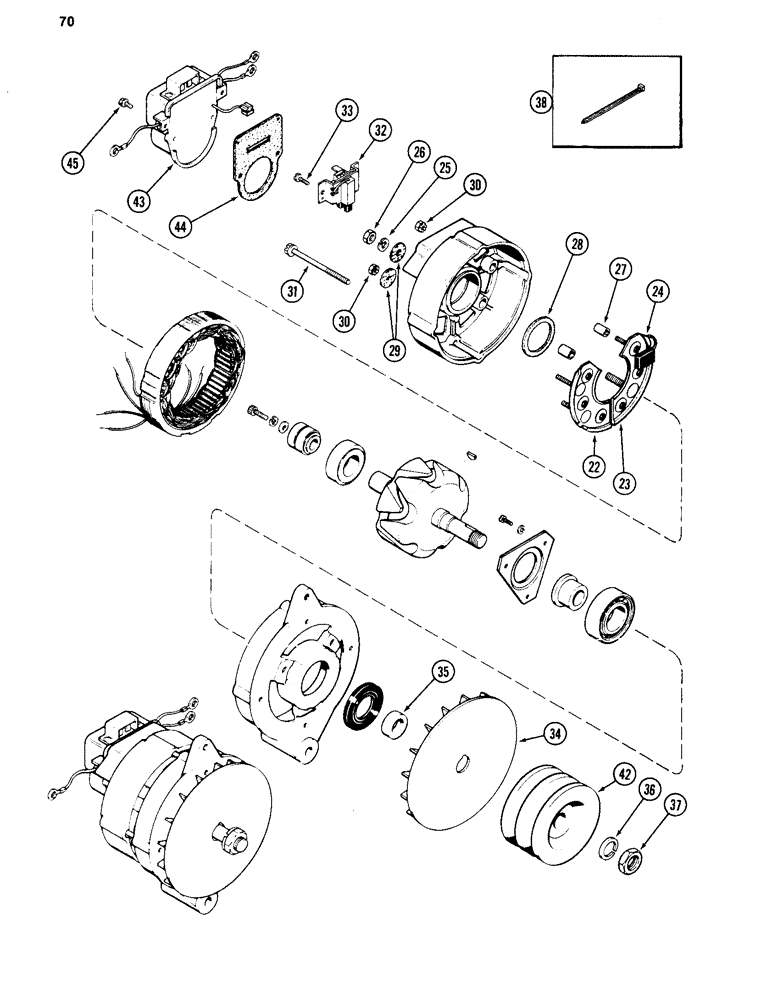

Запчасти Case 880C (070) - ALTERNATOR, 504BD DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

A47090

ALTERNATOR

ASSEMBLY - (Continued from Figure 68), Includes: Ref. 22 - 38

1шт.

22

A47165

DIODE

RECTIFIER ASSEMBLY - negative, with diodes and studs, Serial Range: (anode-plate)

1шт.

23

A47164

DIODE

RECTIFIER ASSEMBLY - positive, with diodes and studs, Serial Range: (cathode-plate)

1шт.

24

A45253

DIODE ELEMENT

DIODE ASSEMBLY - trio

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

3шт.

26

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

27

A45254

SPACER

- trio diode

1шт.

28

A44771

SLEEVE CYLINDER

SLEEVE - insulator, 1/4 x 5/16 x 1/2 inch (6 x 8 x 13 mm)

1шт.

28

A47156

SLEEVE CYLINDER

SLEEVE - insulator, 3/16 x 1/4 x 3/8 inch (5 x 6 x 10 mm)

1шт.

29

A47613

WASHER

- insulating, 1/4 x 3/4 x 1/16 inch (6 x 19 x 2 mm)

2шт.

29

A47612

WASHER

- insulating, 3/16 x 3/4 x 1/16 inch (5 x 19 x 2 mm)

2шт.

30

A41060

LOCK NUT

NUT - hex, No. 10-24, with Shakeproof washer

3шт.

31

A45030

BOLT

- through

4шт.

32

A41048

BRUSH, COMMUTATOR

BRUSH ASSEMBLY - with holder

1шт.

33

187-480

SCREW,Hex Hd, #8 x 1/2"

- brush holder to rear housing

2шт.

34

A42431

FAN

- ventilating

1шт.

35

A47162

SPACER

- fan

1шт.

36

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

37

A41035

NUT

- pulley retaining

1шт.

38

T54520

STRAP

- wire

2шт.

42

A41361

PULLEY

- drive

1шт.

43

A47167

REGULATOR

ASSEMBLY - voltage

1шт.

44

A47159

GASKET

- regulator to rear housing

1шт.

45

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

- self-tapping, No. 8-32 x 1/2 inch

2шт.

45

187-1089

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

SCREW - slotted hex washer head, No. 8-32 x 3/4 inch

2шт.
